特性
规格
相关配件

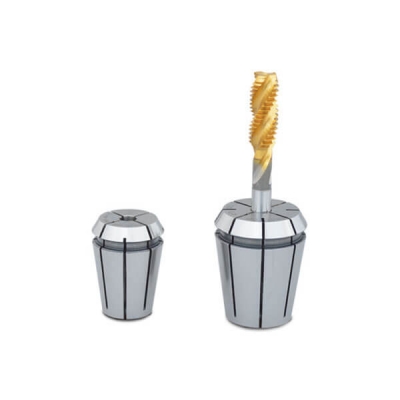

TER 伸缩攻牙本体须搭配 ER 筒夹做使用

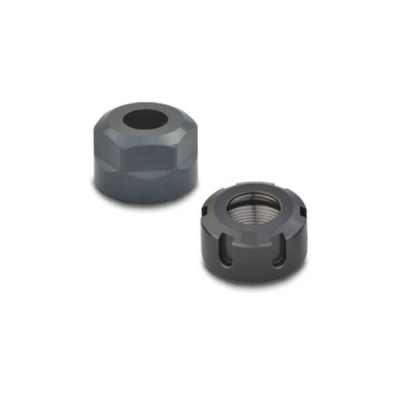

使用时，螺帽请勿过度锁紧以免造成本体及螺帽损坏
另有直柄削平面可供选购， 请於订购时注明 " 削平面 "

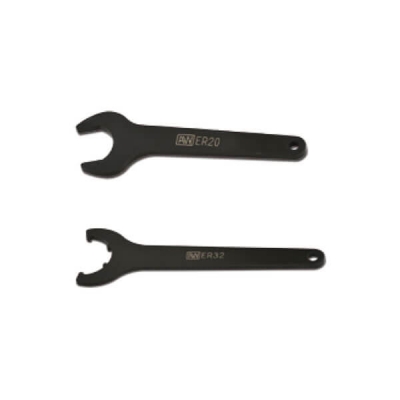

ER 扳手为另购品

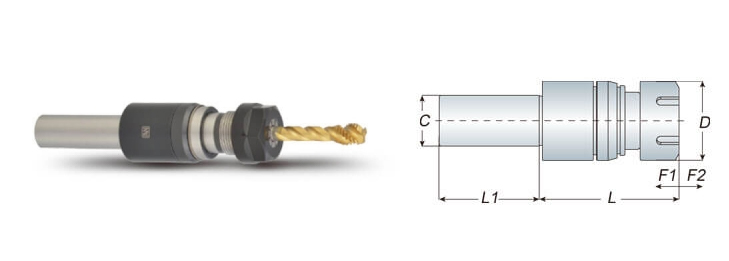

| 型号 | C | D | L | L1 | F1 | F2 | 攻牙范围 | 筒夹类型 | 重量(kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||
| C3/4" TER16 | 3/4" | 28 | 1.10" | 75 | 2.953" | 55 | 5 | 0.197" | 12 | 0.472" | M3~M10 | ER16GB | 0.40 |
| C3/4" TER20 | 3/4" | 34 | 1.34" | 80 | 3.150" | 55 | 5 | 0.197" | 12 | 0.472" | M3~M12 | ER20GB | 0.50 |
| C3/4" TER25 | 3/4" | 42 | 1.65" | 80 | 3.150" | 55 | 5 | 0.197" | 12 | 0.472" | M4~M16 | ER25GB | 0.80 |
| C1" TER16 | 1" | 28 | 1.10" | 75 | 2.953" | 65 | 5 | 0.197" | 12 | 0.472" | M3~M10 | ER16GB | 0.50 |
| C1" TER20 | 1" | 34 | 1.34" | 80 | 3.150" | 65 | 5 | 0.197" | 12 | 0.472" | M3~M12 | ER20GB | 0.60 |
| C1" TER25 | 1" | 42 | 1.65" | 80 | 3.150" | 65 | 5 | 0.197" | 12 | 0.472" | M4~M16 | ER25GB | 0.90 |
| C1" TER32 | 1" | 50 | 1.97" | 80 | 3.150" | 65 | 5 | 0.197" | 12 | 0.472" | M4~M22 | ER32GB | 1.10 |
| C1-1/4" TER16 | 1-1/4" | 28 | 1.10" | 75 | 2.953" | 70 | 5 | 0.197" | 12 | 0.472" | M3~M10 | ER16GB | 0.70 |
| C1-1/4" TER20 | 1-1/4" | 34 | 1.34" | 80 | 3.150" | 70 | 5 | 0.197" | 12 | 0.472" | M3~M12 | ER20GB | 0.80 |
| C1-1/4" TER25 | 1-1/4" | 42 | 1.65" | 80 | 3.150" | 70 | 5 | 0.197" | 12 | 0.472" | M4~M16 | ER25GB | 1.00 |
| C1-1/4" TER32 | 1-1/4" | 50 | 1.97" | 80 | 3.150" | 70 | 5 | 0.197" | 12 | 0.472" | M4~M22 | ER32GB | 1.30 |
| C1-1/2" TER16 | 1-1/2" | 28 | 1.10" | 75 | 2.953" | 70 | 5 | 0.197" | 12 | 0.472" | M3~M10 | ER16GB | 1.00 |
| C1-1/2" TER20 | 1-1/2" | 34 | 1.34" | 80 | 3.150" | 70 | 5 | 0.197" | 12 | 0.472" | M3~M12 | ER20GB | 1.10 |
| C1-1/2" TER25 | 1-1/2" | 42 | 1.65" | 80 | 3.150" | 70 | 5 | 0.197" | 12 | 0.472" | M4~M16 | ER25GB | 1.30 |
| C1-1/2" TER32 | 1-1/2" | 50 | 1.97" | 80 | 3.150" | 70 | 5 | 0.197" | 12 | 0.472" | M4~M22 | ER32GB | 1.50 |
