AVC High Speed Collet ChuckABT SERIES

Consult

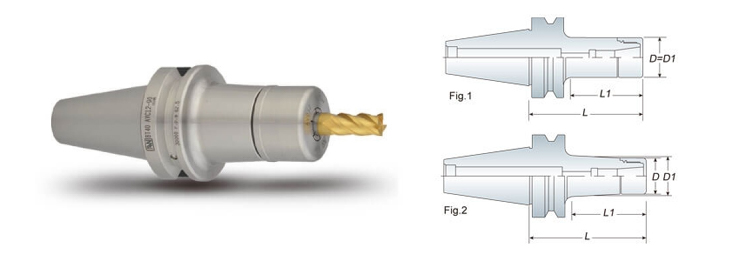

AVC 高转速高精度立铣刀本体-1.jpg

Features

Specification

Accessories

AVC long-type collet with an angle of 8° increases clamping force and cutting rigidity and precision.

Special nut design provides better cutting conditions and reduces cutting vibrations.

The wrench must be ordered separately.

Balancing:30,000 r.p.m G2.5

ABT-AVC is produced by order.

Model No.	FIG.	Clamping Ranged	D	D1	L	L1	Weight(kg)
ABT30 AVC06-060	2	2~6	27	29	60	35	0.60
ABT30 AVC10-060	1	3~10	33	33	60	40	0.70
ABT30 AVC12-060	1	3~12	40	40	60	37	0.70
ABT40 AVC06-090	2	2~6	27	31	90	60	1.35
ABT40 AVC10-090	2	3~10	33	40	90	65	1.50
ABT40 AVC12-090	2	3~12	40	44	90	60	1.60
ABT50 AVC06-105	2	2~6	27	32	105	62	4.10
ABT50 AVC06-165	2	2~6	27	38	165	122	4.50
ABT50 AVC10-105	2	3~10	33	41	105	70	4.30
ABT50 AVC10-165	2	3~10	33	47	165	130	4.80
ABT50 AVC12-105	2	3~12	40	44	105	62	4.30
ABT50 AVC12-165	2	3~12	40	51	165	122	5.10
