Features
Specification

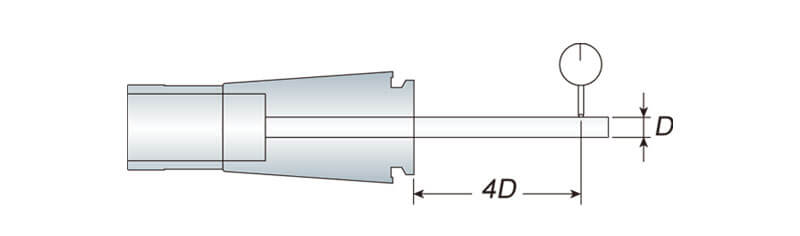

| Collet Grade | Runout - Max μ 4xD |
|---|---|
| A | ≦ 10μ |
| AA | ≦ 5μ |
When ordering, please specify the collet grade with A or AA.
For example: AVC12-08 AA.
The tolerance of the tool shank should be h7.

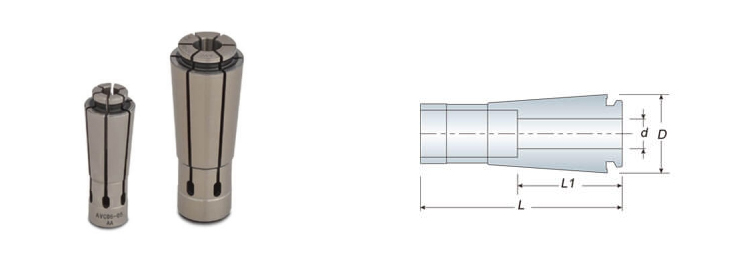

| Model No. | d | D | L1 | L | Weight (kg) |
|---|---|---|---|---|---|
| AVC06-02 | 2 | 14 | 14 | 40 | 0.02 |
| AVC06-03 | 3 | 16 | |||
| AVC06-04 | 4 | 18 | |||
| AVC06-05 | 5 | 20 | |||
| AVC06-06 | 6 | 22 | |||
| AVC10-03 | 3 | 17 | 16 | 45.5 | 0.04 |
| AVC10-04 | 4 | 18 | |||
| AVC10-05 | 5 | 20 | |||
| AVC10-06 | 6 | 22 | |||
| AVC10-08 | 8 | 28 | |||
| AVC10-10 | 10 | 30 | |||
| AVC12-03 | 3 | 21 | 16 | 54 | 0.06 |
| AVC12-04 | 4 | 18 | |||
| AVC12-05 | 5 | 20 | |||
| AVC12-06 | 6 | 22 | |||
| AVC12-07 | 7 | 25 | |||
| AVC12-08 | 8 | 28 | |||
| AVC12-09 | 9 | 28 | |||
| AVC12-10 | 10 | 30 | |||
| AVC12-11 | 11 | 30 | |||
| AVC12-12 | 12 | 32 |
