ASK tooling systems are suitable for high speed and high precision cutting.
Special nut design provides better cutting condition and reducing cutting vibration.
ASK collet can be achieve the best cutting condition when using AA grade.
Wrench must be ordered separately.
Balancing:30,000 r.p.m G2.5

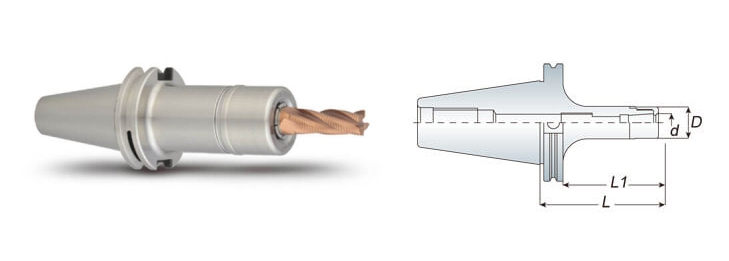

| Model No. | Clamping Ranged (d) | D | L1 | L | Weight(kg) |
|---|---|---|---|---|---|
| CAT40 ASK10-3.15" | 2~10 | 27 | 2.40" | 3.15" | 1.20 |
| CAT40 ASK10-4.00" | 2~10 | 27 | 3.25" | 4.00" | 1.40 |
| CAT40 ASK16-3.15" | 3~16 | 40 | 2.40" | 3.15" | 1.40 |
| CAT40 ASK16-4.00" | 3~16 | 40 | 3.25" | 4.00" | 1.50 |
| CAT40 ASK25-4.00" | 6~25.4 | 54 | 3.25" | 4.00" | 1.90 |
| CAT50 ASK10-4.00" | 2~10 | 27 | 3.25" | 4.00" | 3.30 |
| CAT50 ASK16-4.00" | 3~16 | 40 | 3.25" | 4.00" | 3.50 |
| CAT50 ASK16-6.00" | 3~16 | 40 | 5.25" | 6.00" | 3.90 |
| CAT50 ASK25-4.00" | 6~25.4 | 54 | 3.25" | 4.00" | 3.80 |
| CAT50 ASK25-6.00" | 6~25.4 | 54 | 5.25" | 6.00" | 4.20 |
Unit: mm
