Specification

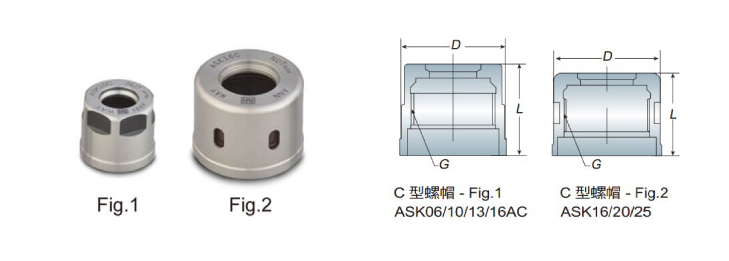

C Type Nut
| Model No. | FIG. | D | L | G | Weight (kg) |
|---|---|---|---|---|---|
| ASK06C-NUT | 1 | 19.05 | 21 | M15x1.0P | 0.02 |
| ASK10C-NUT | 1 | 27 | 24 | M22x1.0P | 0.04 |
| ASK13C-NUT | 1 | 33 | 27 | M27x1.0P | 0.08 |
| ASK16AC-NUT | 1 | 40 | 27 | M27x1.0P | 0.08 |
| ASK16C-NUT | 2 | 40 | 31 | M32x1.5P | 0.11 |
| ASK20C-NUT | 2 | 48 | 30 | M40x1.0P | 0.15 |
| ASK25C-NUT | 2 | 54 | 37 | M45x1.5P | 0.18 |
Unit: mm
