Features
Specification
Accessories

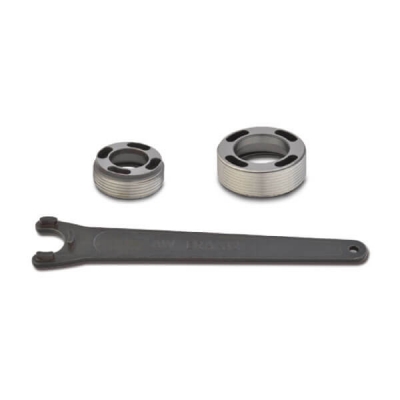

The clamping nuts for ERA are special designed to be fitted internally into the holder. The special design could provide better cutting conditions and reducing cutting vibrations.
Wrench must be ordered separately.
Balancing: 30,000 r.p.m G2.5

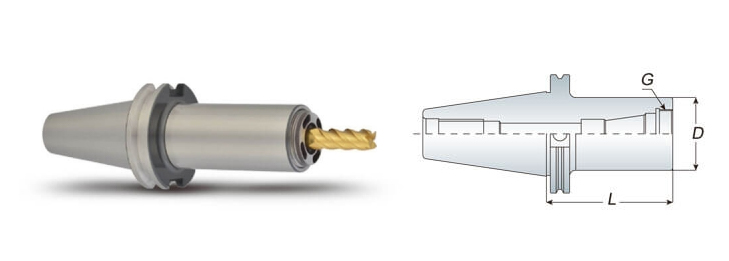

| Model No. | Clamping Ranged | D | L | G | Weight(kg) |
|---|---|---|---|---|---|
| CAT40 ERA11-2.50" | 1~7 | 0.75" | 2.50" | M18x1.0P | 1.00 |
| CAT40 ERA11-4.00" | 1~7 | 0.75" | 4.00" | M18x1.0P | 1.20 |
| CAT40 ERA16-2.50" | 1~10 | 1.10" | 2.50" | M24x1.0P | 1.10 |
| CAT40 ERA16-3.00" | 1~10 | 1.10" | 3.00" | M24x1.0P | 1.30 |
| CAT40 ERA16-5.00" | 1~10 | 1.10" | 5.00" | M24x1.0P | 1.60 |
| CAT40 ERA20-3.00" | 1~13 | 1.25" | 3.00" | M28x1.5P | 1.20 |
| CAT40 ERA20-4.00" | 1~13 | 1.25" | 4.00" | M28x1.5P | 1.30 |
| CAT40 ERA25-2.50" | 2~16 | 1.50" | 2.50" | M32x1.5P | 1.30 |
| CAT40 ERA25-4.00" | 2~16 | 1.50" | 4.00" | M32x1.5P | 1.50 |
| CAT40 ERA32-3.00" | 2~20 | 1.81" | 3.00" | M40x1.5P | 1.40 |
| CAT40 ERA32-4.00" | 2~20 | 1.81" | 4.00" | M40x1.5P | 1.70 |
| CAT50 ERA16-4.00" | 1~10 | 1.10" | 4.00" | M24x1.0P | 3.30 |
| CAT50 ERA16-6.00" | 1~10 | 1.10" | 6.00" | M24x1.0P | 3.60 |
| CAT50 ERA20-4.00" | 1~13 | 1.25" | 4.00" | M28x1.5P | 3.40 |
| CAT50 ERA20-6.00" | 1~13 | 1.25" | 6.00" | M28x1.5P | 3.70 |
| CAT50 ERA25-4.00" | 2~16 | 1.50" | 4.00" | M32x1.5P | 3.50 |
| CAT50 ERA25-6.00" | 2~16 | 1.50" | 6.00" | M32x1.5P | 3.80 |
| CAT50 ERA32-4.00" | 2~20 | 1.81" | 4.00" | M40x1.5P | 3.80 |
| CAT50 ERA32-6.00" | 2~20 | 1.81" | 6.00" | M40x1.5P | 4.10 |
Unit: mm
