Features
Specification
DIN 6499 / ISO 15488 collet must be assembled into the clamping nut before inserting it into the chuck.
Metric Size

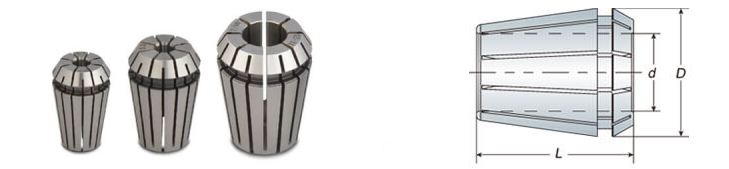

| Model No. | D | L | d | Weight (kg) |
|---|---|---|---|---|
| ER08 | 8.5 | 13.5 | 1,1.5,2,2.5,3,3.5,4,4.5,5 | 0.01 |
| ER11 | 11.5 | 18 | 1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7 | 0.01 |
| ER16 | 17 | 27 | 1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,7.5,8,8.5,9,9.5,10 | 0.03 |
| ER20 | 21 | 31 | 1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,7.5,8,8.5,9,9.5,10,10.5,11,11.5,12,12.5,13 | 0.04 |
| ER25 | 26 | 35 | 2,3,4,5,6,7,8,9,10,11,12,13,14,15,16 | 0.07 |
| ER32 | 33 | 40 | 2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20 | 0.15 |
| ER40 | 41 | 46 | 3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26 | 0.27 |
| ER50 | 52 | 60 | 12,14,16,18,20,22,24,26,28,30,32,34 | 0.45 |
