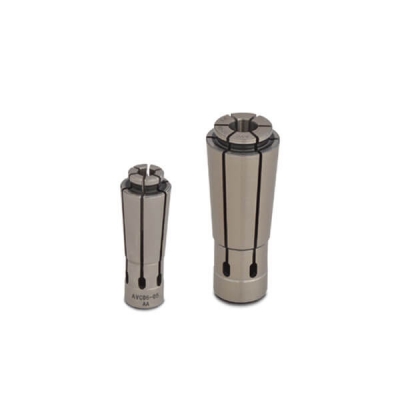

AVC Long type collet with angle 8° increases clamping force, cutting rigidity and precision.

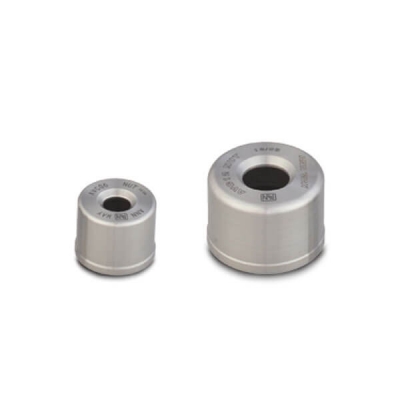

Special nut design provides better cutting conditions and reducing cutting vibrations.
Special nut design provides better cutting conditions and reducing cutting vibrations.
Balancing: 30,000 r.p.m G2.5

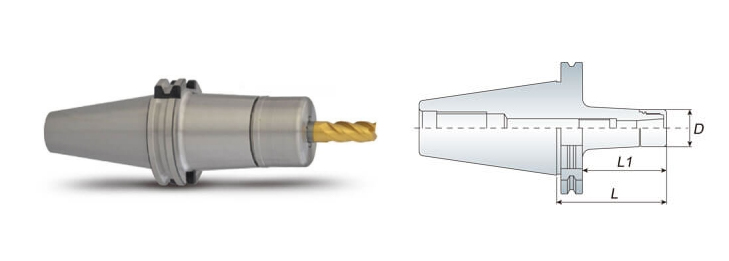

| Model No. | Clamping Ranged | D | L | L1 | Weight(kg) |
|---|---|---|---|---|---|
| SK40 AVC06-090 | 2~6 | 27 | 90 | 70.9 | 1.30 |
| SK40 AVC10-090 | 3~10 | 33 | 90 | 70.9 | 1.40 |
| SK40 AVC12-090 | 3~12 | 40 | 90 | 70.9 | 1.50 |
| SK50 AVC06-105 | 2~6 | 27 | 105 | 85.9 | 3.90 |
| SK50 AVC10-105 | 3~10 | 33 | 105 | 85.9 | 4.10 |
| SK50 AVC12-105 | 3~12 | 40 | 105 | 85.9 | 4.20 |
Unit: mm
