ASK High Speed Collet ChuckSK SERIES DIN69871A

Consult

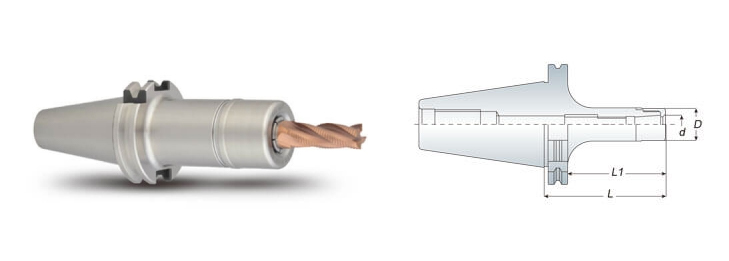

ASK 高转速精密筒夹本体-SK-1.jpg

Features

Specification

Accessories

ASK tooling systems are suitable for high speed and high precision cutting.

Special nut design provides better cutting condition and reducing cutting vibration.

ASK collet can be achieve the best cutting condition when using AA grade.

Wrench must be ordered separately.

Balancing: 30,000 r.p.m G2.5

Model No.	Clamping Ranged (d)	D	L	L1	Weight(kg)
SK30 ASK06-060	2~6	20	60	35.9	0.60
SK30 ASK10-070	2~10	27	70	50.9	0.70
SK30 ASK10-090	2~10	27	90	75.9	0.80
SK30 ASK16-060	3~16	40	60	40.9	0.90
SK30 ASK16-090	3~16	40	90	65.9	1.00
SK30 ASK16-120	3~16	40	120	80.9	1.10
SK30 ASK20-060	4~20	48	60	40.9	0.80
SK30 ASK25-085	6~25.4	54	85	65.9	1.20
SK40 ASK06-080/090	2~6	20	80/90	60.9	1.10/1.20
SK40 ASK06-100	2~6	20	100	80.9	1.30
SK40 ASK10-080/090	2~10	27	80/90	60.9	1.20/1.30
SK40 ASK10-100	2~10	27	100	80.9	1.40
SK40 ASK13-080	3~13	33	80	60.9	1.30
SK40 ASK13-100	3~13	33	100	80.9	1.50
SK40 ASK16-080	3~16	40	80	60.9	1.40
SK40 ASK16-100	3~16	40	100	80.9	1.50
SK40 ASK20-090	4~20	48	90	70.9	1.80
SK40 ASK25-095	6~25.4	54	95	75.9	1.90
SK40 ASK25-110	6~25.4	54	110	90.9	2.00
SK50 ASK06-100	2~6	20	100	80.9	3.00
SK50 ASK10-100	2~10	27	100	80.9	3.30
SK50 ASK10-130	2~10	27	130	110.9	3.40
SK50 ASK10-150	2~10	27	150	130.9	3.50
SK50 ASK13-100	3~13	33	100	80.9	4.50
SK50 ASK13-130	3~13	33	130	110.9	4.70
SK50 ASK13-150	3~13	33	150	130.9	4.90
SK50 ASK16-100	3~16	40	100	80.9	3.50
SK50 ASK16-130	3~16	40	130	110.9	3.70
SK50 ASK16-150	3~16	40	150	130.9	3.90
SK50 ASK20-100	4~20	48	100	80.9	4.60
SK50 ASK20-130	4~20	48	130	110.9	5.00
SK50 ASK20-150	4~20	48	150	130.9	5.60
SK50 ASK25-100	6~25.4	54	100	80.9	3.80
SK50 ASK25-130	6~25.4	54	130	110.9	4.00
SK50 ASK25-150	6~25.4	54	150	130.9	4.20

Unit: mm
