AVC High Speed Collet ChuckBT / NT SERIES

Consult

AVC 高转速高精度立铣刀本体-1.jpg

Features

Specification

Accessories

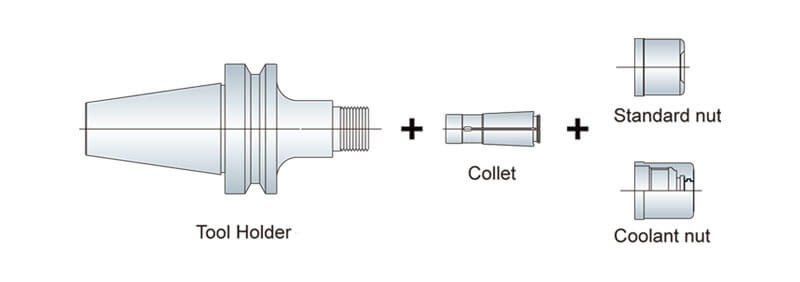

Through tools must use integer collet and coolant nut together. (refer to P.28)

AVC long type collet with angle 8° increase clamping force and cutting rigidity and precision.

Special nut design provides better cutting conditions and reducing cutting vibrations.

Wrench must be ordered separately.

Balancing: 30,000 r.p.m G2.5

Coolant Nut: refer to P.28

型号	FIG.	夹持范围	D	D1	L	L1	重量 (kg)
BT30 AVC06-045	1	2~6	27	27	45	23	0.55
BT30 AVC06-060	2	2~6	27	29	60	35	0.60
BT30 AVC06-090	2	2~6	27	32	90	65	0.80
BT30 AVC10-060	1	3~10	33	33	60	40	0.70
BT30 AVC10-090	2	3~10	33	40	90	70	0.80
BT30 AVC12-060	1	3~12	40	40	60	37	0.70
BT30 AVC12-090	1	3~12	40	40	90	67	1.00
BT30 AVC12-120	1	3~12	40	40	120	97	1.30
BT40 AVC06-060	1	2~6	27	27	60	30	1.20
BT40 AVC06-090	2	2~6	27	31	90	60	1.35
BT40 AVC06-120	2	2~6	27	34	120	90	1.50
BT40 AVC10-060	1	3~10	33	33	60	35	1.30
BT40 AVC10-090	2	3~10	33	40	90	65	1.50
BT40 AVC10-120	2	3~10	33	44	120	95	1.70
BT40 AVC12-060	1	3~12	40	40	60	31	1.30
BT40 AVC12-090	2	3~12	40	44	90	60	1.60
BT40 AVC12-120	2	3~12	40	47	120	90	2.00
BT50 AVC06-105	2	2~6	27	32	105	62	4.10
BT50 AVC06-135	2	2~6	27	35	135	92	4.30
BT50 AVC06-165	2	2~6	27	38	165	122	4.50
BT50 AVC10-105	2	3~10	33	41	105	70	4.30
BT50 AVC10-135	2	3~10	33	44	135	100	4.50
BT50 AVC10-165	2	3~10	33	47	165	130	4.80
BT50 AVC12-105	2	3~12	40	44	105	62	4.30
BT50 AVC12-135	2	3~12	40	47	135	92	4.70
BT50 AVC12-165	2	3~12	40	51	165	122	5.10

Unit: mm
