ER Spring Collet ChuckSK SERIES DIN69871A

Consult

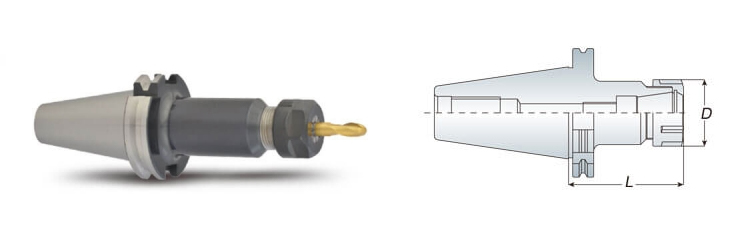

ER 彈性筒夾本體-1.jpg

Features

Specification

Accessories

ER collet chuck with the ﬂexibility that can clamp drill, reamers, end mills and taps.

ER16 / ER20 holder can make M type as your choice.

ER collet chuck is also suitable for ER bearing nut and wrench.

ER spring collet chuck - long type upon your request.

Wrench must be ordered separately.

Model No.	Clamping Ranged	D	L	Collet Type	Wrench	Weight(kg)
SK40 ER16-070	1~10	28	70	ER16	WER16	1.30
SK40 ER16-100	1~10	28	100	ER16	WER16	1.40
SK40 ER16-150	1~10	28	150	ER16	WER16	1.60
SK40 ER20-080	1~13	34	80	ER20	WER20	1.40
SK40 ER20-100	1~13	34	100	ER20	WER20	1.50
SK40 ER20-150	1~13	34	150	ER20	WER20	1.80
SK40 ER25-080	2~16	42	80	ER25	WER25	1.50
SK40 ER25-100	2~16	42	100	ER25	WER25	1.70
SK40 ER25-150	2~16	42	150	ER25	WER25	2.00
SK40 ER32-070	2~20	50	70	ER32	WER32	1.40
SK40 ER32-100	2~20	50	100	ER32	WER32	1.80
SK40 ER40-080	3~26	63	80	ER40	WER40	1.60
SK40 ER40-100	3~26	63	100	ER40	WER40	1.90
SK50 ER16-100	1~10	28	100	ER16	WER16	3.20
SK50 ER16-150	1~10	28	150	ER16	WER16	3.50
SK50 ER20-100	1~13	34	100	ER20	WER20	3.40
SK50 ER20-150	1~13	34	150	ER20	WER20	3.70
SK50 ER25-100	2~16	42	100	ER25	WER25	3.50
SK50 ER25-150	2~16	42	150	ER25	WER25	3.80
SK50 ER32-100	2~20	50	100	ER32	WER32	3.50
SK50 ER32-150	2~20	50	150	ER32	WER32	3.80
SK50 ER40-100	3~26	63	100	ER40	WER40	3.80
SK50 ER40-150	3~26	63	150	ER40	WER40	4.10
