ER collet chuck with the flexibility that can clamp drill, reamers, end mills and taps.
ER collet chuck is also suitable for ER bearing nut and wrench.
Wrench must be ordered separately.
Balancing: 30,000 r.p.m G2.5

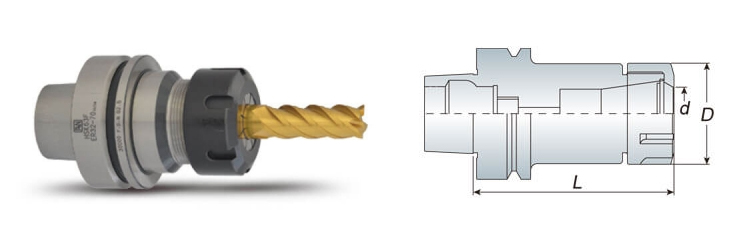

| Model No. | Clamping Ranged(d) | D | L | Collet Type | Wrench | Weight(kg) |
|---|---|---|---|---|---|---|
| HSK63F ER16-080 | 1~10 | 28 | 80 | ER16 | WER16 | 0.90 |
| HSK63F ER16-100 | 1~10 | 28 | 100 | ER16 | WER16 | 1.10 |
| HSK63F ER20-080 | 1~13 | 34 | 80 | ER20 | WER20 | 1.00 |
| HSK63F ER20-100 | 1~13 | 34 | 10 | ER20 | WER20 | 1.30 |
| HSK63F ER25-080 | 2~16 | 42 | 80 | ER25 | WER25 | 1.10 |
| HSK63F ER25-100 | 2~16 | 42 | 100 | ER25 | WER25 | 1.30 |
| HSK63F ER32-080 | 2~20 | 50 | 80 | ER32 | WER32 | 1.20 |
| HSK63F ER32-100 | 2~20 | 50 | 100 | ER32 | WER32 | 1.40 |
| HSK63F ER40-080 | 3~26 | 63 | 80 | ER40 | WER40 | 1.40 |
| HSK63F ER40-100 | 3~26 | 63 | 100 | ER40 | WER40 | 1.60 |
