AVC long type collet with angle 8° increases clamping force and cutting rigidity and precision.
Special nut design provides better cutting conditions and reducing cutting vibrations.
Wrench must be ordered separately.
Balancing: 30,000 r.p.m G2.5

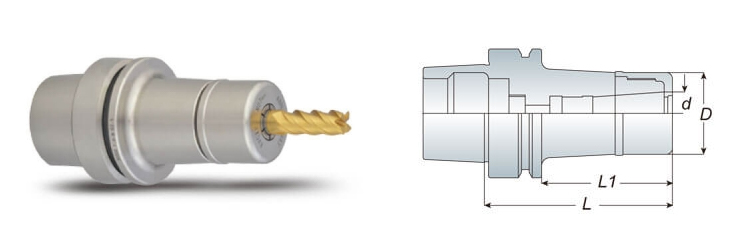

| Model No. | Clamping Ranged (d) | D | L | L1 | Weight(kg) |
|---|---|---|---|---|---|
| HSK40E AVC06-070 | 2~6 | 27 | 70 | 50 | 0.50 |
| HSK40E AVC06-090 | 2~6 | 27 | 90 | 70 | 0.70 |
| HSK40E AVC10-090 | 3~10 | 33 | 90 | 70 | 0.80 |
| HSK40E AVC12-090 | 3~12 | 40 | 90 | 70 | 0.80 |
| HSK50E AVC06-070 | 2~6 | 27 | 70 | 44 | 0.70 |
| HSK50E AVC06-090 | 2~6 | 27 | 90 | 64 | 0.80 |
| HSK50E AVC10-090 | 3~10 | 33 | 90 | 64 | 1.00 |
| HSK50E AVC12-090 | 3~12 | 40 | 90 | 64 | 1.00 |
