ER collet chuck with the flexibility that can clamp drill, reamers, end mills, and taps.
ER collet chuck is also suitable for ER bearing nut and wrench.
The wrench must be ordered separately.
Balancing: 30,000 r.p.m G2.5

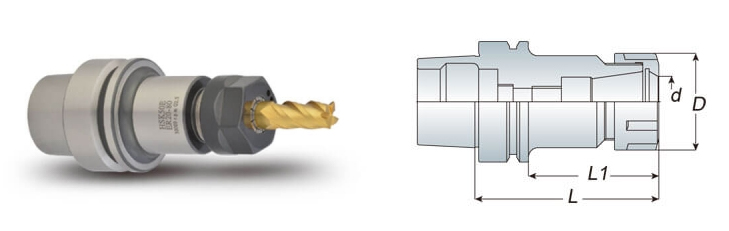

| Model No. | Clamping Ranged (d) | D | L | L1 | Collet Type | Wrench | Weight(kg) |
|---|---|---|---|---|---|---|---|
| HSK25E ER16-040M | 1~10 | 22 | 40 | 30 | ER16 | WM16 | 0.10 |
| HSK32E ER16-060M | 1~10 | 22 | 60 | 40 | ER16 | WM16 | 0.20 |
| HSK32E ER20-060M | 1~13 | 28 | 60 | 40 | ER20 | WM20 | 0.30 |
| HSK40E ER16-080 | 1~10 | 28 | 80 | 60 | ER16 | WER16 | 0.50 |
| HSK40E ER20-080 | 1~13 | 34 | 80 | 60 | ER20 | WER20 | 0.60 |
| HSK40E ER25-080 | 2~16 | 42 | 80 | 60 | ER25 | WER25 | 0.80 |
| HSK50E ER16-100 | 1~10 | 28 | 100 | 74 | ER16 | WER16 | 0.80 |
| HSK50E ER20-100 | 1~13 | 34 | 100 | 74 | ER20 | WER20 | 0.90 |
| HSK50E ER25-100 | 2~16 | 42 | 100 | 74 | ER25 | WER25 | 1.10 |
| HSK50E ER32-100 | 2~20 | 50 | 100 | 74 | ER32 | WER32 | 1.30 |
