Features
Specification
Accessories
ASK tooling systems are suitable for high speed and high precision cutting.
Special nut design provides better cutting condition and reducing cutting vibration.
ASK collet can be achieve the best cutting condition when using AA grade.
Wrench must be ordered separately.
Balancing: 30,000 r.p.m G2.5

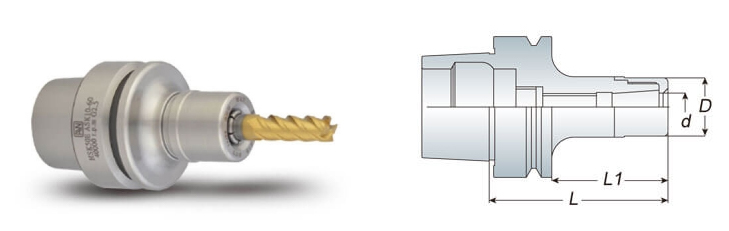

| Model No. | Clamping Ranged(d) | D | L1 | L | Weight(kg) |
|---|---|---|---|---|---|
| HSK25E ASK06-045 | 2~6 | 19.05 | 35 | 45 | 0.15 |
| HSK32E ASK06-050 | 2~6 | 19.05 | 30 | 50 | 0.17 |
| HSK32E ASK10-060 | 2~10 | 27 | 40 | 60 | 0.26 |
| HSK40E ASK06-060 | 2~6 | 19.05 | 40 | 60 | 0.50 |
| HSK40E ASK10-060 | 2~10 | 27 | 40 | 60 | 0.50 |
| HSK40E ASK10-080 | 2~10 | 27 | 55 | 75 | 0.60 |
| HSK40E ASK16-080 | 3~16 | 40 | 60 | 80 | 0.80 |
| HSK50E ASK06-080 | 2~6 | 19.05 | 54 | 80 | 0.70 |
| HSK50E ASK10-060 | 2~10 | 27 | 34 | 60 | 0.70 |
| HSK50E ASK10-080 | 2~10 | 27 | 54 | 80 | 0.80 |
| HSK50E ASK16-080 | 3~16 | 40 | 54 | 80 | 1.00 |
