ASK High Speed Collet ChuckHSK SERIES

Consult

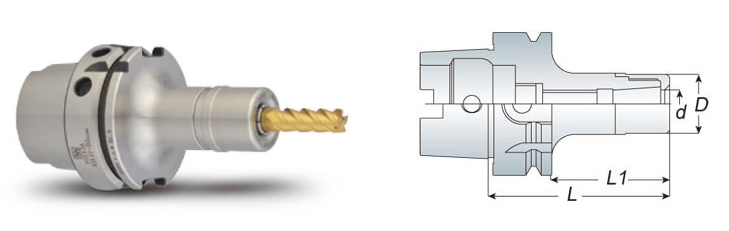

ASK 高转速精密筒夹本体-1.jpg

Features

Specification

Accessories

ASK tooling systems are suitable for high speed and high precision cutting.

Special nut design provides better cutting condition and reducing cutting vibration.

ASK collet can be achieve the best cutting condition when using AA grade.

Wrench must be ordered separately.

Balancing: 30,000 r.p.m G2.5

Model No.	Clamping Ranged (d)	D	L1	L	Weight (kg)
HSK40A ASK10-055	2~10	27	35	55	0.40
HSK50A ASK06-060	2~6	19.05	34	60	0.60
HSK50A ASK10-080	2~10	27	54	80	0.70
HSK50A ASK13-080	3~13	33	54	80	0.80
HSK50A ASK16-080	3~16	40	54	80	0.90
HSK63A ASK06-080	2~6	19.05	54	80	0.90
HSK63A ASK06-100	2~6	19.05	74	100	1.00
HSK63A ASK10-060	2~10	27	34	60	0.90
HSK63A ASK10-080	2~10	27	54	80	1.00
HSK63A ASK10-100/120	2~10	27	74/94	100/120	1.10/1.20
HSK63A ASK13-080	3~13	33	54	80	1.20
HSK63A ASK13-100/120	3~13	33	74/94	100/120	1.40/1.60
HSK63A ASK16-080	3~16	40	54	80	1.10
HSK63A ASK16-100/120	3~16	40	74/94	100/120	1.30/1.50
HSK63A ASK20-090	4~20	48	64	90	1.50
HSK63A ASK25-090	6~25.4	54	64	90	1.50
HSK100A ASK06-105	2~6	19.05	76	105	1.20
HSK100A ASK10-105/120	2~10	27	76/91	105/120	2.60/2.70
HSK100A ASK10-150/200	2~10	27	121/171	150/200	2.80/3.00
HSK100A ASK13-105/120	3~13	33	76/91	105/120	2.70/2.90
HSK100A ASK13-150/200	3~13	33	121/171	150/200	3.10/3.40
HSK100A ASK16-105/120	3~16	40	76/91	105/120	2.80/3.10
HSK100A ASK16-150/200	3~16	40	121/171	150/200	3.40/3.70
HSK100A ASK20-120	4~20	48	91	120	3.50
HSK100A ASK20-150/200	4~20	48	121/171	150/200	3.90/4.30
HSK100A ASK25-120/145	6~25.4	54	91/116	120/145	3.50/4.00
