Features
Specification
Accessories

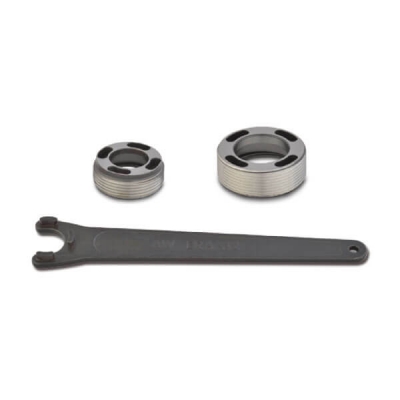

The clamping nuts for ERA are special designed to be fitted internally into the holder. The special design could provide better cutting conditions and reducing cutting vibrations.
Wrench must be ordered separately.
Balancing: 30,000 r.p.m G2.5

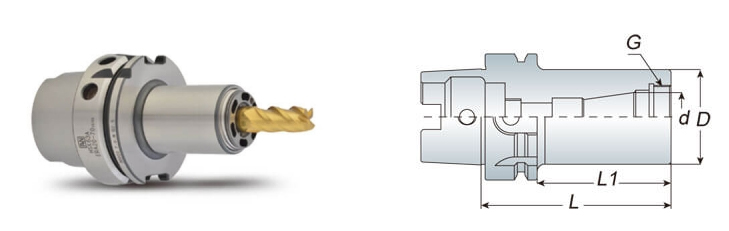

| Model No. | Clamping Ranged (d) | D | L1 | L | G | Weight (kg) |
|---|---|---|---|---|---|---|
| HSK50A ERA11-060 | 1~7 | 22 | 34 | 60 | M18x1.0P | 0.60 |
| HSK50A ERA16-070 | 1~10 | 28 | 44 | 70 | M24x1.0P | 0.70 |
| HSK50A ERA20-070 | 1~13 | 32 | 44 | 70 | M28x1.5P | 0.70 |
| HSK50A ERA25-075 | 2~16 | 38 | 49 | 75 | M32x1.5P | 0.80 |
| HSK63A ERA11-060 | 1~7 | 22 | 34 | 60 | M18x1.0P | 0.90 |
| HSK63A ERA16-070 | 1~10 | 28 | 44 | 70 | M24x1.0P | 1.00 |
| HSK63A ERA20-070 | 1~13 | 32 | 44 | 70 | M28x1.5P | 1.10 |
| HSK63A ERA25-075 | 2~16 | 38 | 49 | 75 | M32x1.5P | 1.10 |
| HSK63A ERA32-085 | 2~20 | 46 | 59 | 85 | M40x1.5P | 1.20 |
