MER Spring Collet ChuckHSK SERIES

Consult

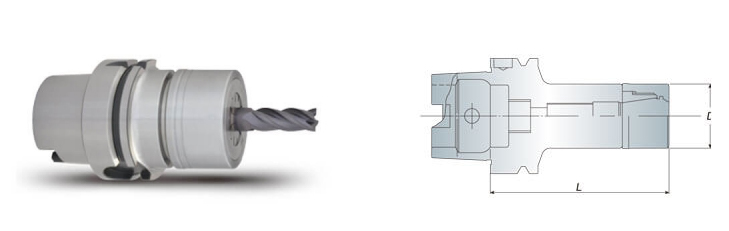

MER 弹性筒夹本体-1.jpg

Features

Specification

Accessories

MER has more contact area between holder and collet to make better radial cutting force than standard ER.

Special design of MER High speed bearing nut, the clamping power is better than Standard ER type.

Suitable to use with ER-E type collet, the cutting condition will be excellent.

Also could be used with standard ER collet, the clamping range change to 0.5mm from 1mm Ex. MER20 holder + ER20 06 collet => Clamping range: 6~5.5mm

WER..G bearing wrench must be ordered separately.

ER Holder + ER Collet
MER Holder + ER Collet
MER Holder + ER-E Type Collet

The design of deeper gauge line for MER holder. Recommend using ER-E type collet into the body (holder). The increasing length of contact area between collet and holder for improved clamping force.

Model No.	Clamping Ranged	D	L	Wrench	Weight(kg)
HSK50A MER16-080	1~10	30	80	WER16G	0.80
HSK50A MER16-100	1~10	30	100	WER16G	1.00
HSK50A MER20-080	1~13	35	80	WER20G	0.80
HSK50A MER20-100	1~13	35	100	WER20G	1.00
HSK50A MER25-080	2~16	40	80	WER25G	1.00
HSK50A MER25-100	2~16	40	100	WER25G	1.20
HSK50A MER32-100	2~20	50	100	WER32G	1.30
HSK63A MER16-080/100	1~10	30	80/100	WER16G	1.10/1.20
HSK63A MER16-120/150	1~10	30	120/150	WER16G	1.30/1.50
HSK63A MER20-080/100	1~13	35	80/100	WER20G	1.10/1.20
HSK63A MER20-120/150	1~13	35	120/150	WER20G	1.40/1.60
HSK63A MER25-080/100	2~16	40	80/100	WER25G	1.30/1.40
HSK63A MER25-120/150	2~16	40	120/150	WER25G	1.70/2.10
HSK63A MER32-080/100	2~20	50	80/100	WER32G	1.40/1.70
HSK63A MER32-150	2~20	50	150	WER32G	2.50
HSK100A MER16-100/160	1~10	30	100/160	WER16G	2.70/3.10
HSK100A MER20-100/160	1~13	35	100/160	WER20G	2.80/3.30
HSK100A MER25-100/160	2~16	40	100/160	WER25G	3.00/.360
HSK100A MER32-100/160	2~20	50	100/160	WER32G	3.10/3.90
