ER Spring Collet ChuckHSK SERIES

Consult

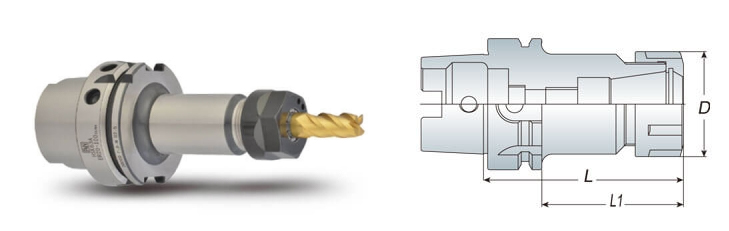

ER 弹性筒夹本体-1.jpg

Features

Specification

Accessories

ER collet chuck with the ﬂexibility that can clamp drill, reamers, end mills and taps.

ER16 / ER20 holder can make M type as your choice.

ER collet chuck is also suitable for ER bearing nut and wrench.

Wrench must be ordered separately.

Model No.	Clamping Ranged	D	L1	L	Collet Type	Wrench	Weight (kg)
HSK50A ER16-080	1~10	28	54	80	ER16	WER16	0.70
HSK50A ER16-100	1~10	28	74	100	ER16	WER16	0.90
HSK50A ER20-080	1~13	34	54	80	ER20	WER20	0.70
HSK50A ER20-100	1~13	34	74	100	ER20	WER20	0.90
HSK50A ER25-080	2~16	42	54	80	ER25	WER25	0.90
HSK50A ER25-100	2~16	42	74	100	ER25	WER25	1.10
HSK50A ER32-100	2~20	50	74	100	ER32	WER32	1.20
HSK63A ER16-080	1~10	28	54	80	ER16	WER16	1.00
HSK63A ER16-100	1~10	28	74	100	ER16	WER16	1.10
HSK63A ER16-120	1~10	28	94	120	ER16	WER16	1.20
HSK63A ER16-150	1~10	28	124	150	ER16	WER16	1.40
HSK63A ER20-080	1~13	34	54	80	ER20	WER20	1.00
HSK63A ER20-100	1~13	34	74	100	ER20	WER20	1.10
HSK63A ER20-120	1~13	34	94	120	ER20	WER20	1.30
HSK63A ER20-150	1~13	34	124	150	ER20	WER20	1.50
HSK63A ER25-080	2~16	42	54	80	ER25	WER25	1.20
HSK63A ER25-100	2~16	42	74	100	ER25	WER25	1.40
HSK63A ER25-120	2~16	42	94	120	ER25	WER25	1.60
HSK63A ER25-150	2~16	42	124	150	ER25	WER25	2.00
HSK63A ER32-080	2~20	50	54	80	ER32	WER32	1.30
HSK63A ER32-100	2~20	50	74	100	ER32	WER32	1.60
HSK63A ER32-150	2~20	50	124	150	ER32	WER32	2.40
HSK63A ER40-080	3~26	63	54	80	ER40	WER40	1.40
HSK63A ER40-100	3~26	63	74	100	ER40	WER40	1.80
HSK63A ER40-150	3~26	63	124	150	ER40	WER40	2.90
HSK100A ER16-100	1~10	28	71	100	ER16	WER16	2.60
HSK100A ER16-160	1~10	28	131	160	ER16	WER16	3.00
HSK100A ER20-100	1~13	34	71	100	ER20	WER20	2.70
HSK100A ER20-160	1~13	34	131	160	ER20	WER20	3.20
HSK100A ER25-100	2~16	42	71	100	ER25	WER25	2.90
HSK100A ER25-160	2~16	42	131	160	ER25	WER25	3.50
HSK100A ER32-100	2~20	50	71	100	ER32	WER32	3.00
HSK100A ER32-160	2~20	50	131	160	ER32	WER32	3.80
HSK100A ER40-100	3~26	63	71	100	ER40	WER40	3.30
HSK100A ER40-160	3~26	63	131	160	ER40	WER40	4.20
