Features
Specification
Accessories

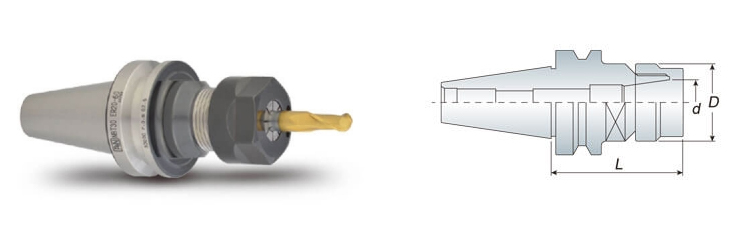

ER collet chuck with the flexibility that can clamp drill, reamers, end mills and taps.
ER collet chuck is also suitable for ER bearing nut and wrench.
Wrench must be ordered separately.
Balancing: 30,000 r.p.m G2.5
| Model No. | Clamping Ranged (d) | D | L | Collet Type | Wrench | Weight (kg) |
|---|---|---|---|---|---|---|
| NBT30 ER16-060 | 1~10 | 28 | 60 | ER16 | WER16 | 0.70 |
| NBT30 ER20-060 | 1~13 | 34 | 60 | ER20 | WER20 | 0.70 |
| NBT30 ER25-060 | 2~16 | 42 | 60 | ER25 | WER25 | 0.80 |
| NBT30 ER32-060 | 2~20 | 50 | 60 | ER32 | WER32 | 0.80 |
