Features
Specification
Accessories
The clamping nuts for ERA are special designed to be fitted internally into the holder. The special design could provide better cutting conditions and reducing cutting vibrations.
Wrench must be ordered separately
Balancing: 30,000 r.p.m G2.5

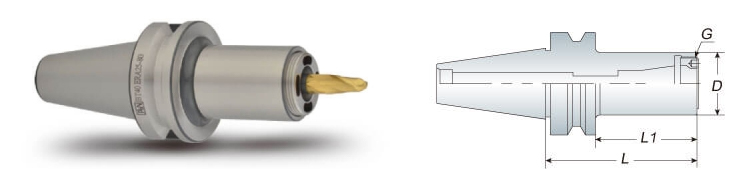

| Model No. | D | L1 | L | G | Weight (kg) |
|---|---|---|---|---|---|
| BT30 ERA11-055 | 22 | 35 | 55 | M18x1.0P | 0.55 |
| BT30 ERA16-065 | 28 | 45 | 65 | M24x1.0P | 0.65 |
| BT30 ERA20-065 | 32 | 45 | 65 | M28x1.5P | 0.70 |
| BT30 ERA25-060 | 38 | 40 | 60 | M32x1.5P | 0.70 |
| BT40 ERA11-070 | 22 | 45 | 70 | M18x1.0P | 1.20 |
| BT40 ERA11-100 | 22 | 75 | 100 | M18x1.0P | 1.20 |
| BT40 ERA16-070 | 28 | 45 | 70 | M24x1.0P | 1.30 |
| BT40 ERA16-100 | 28 | 75 | 100 | M24x1.0P | 1.30 |
| BT40 ERA20-080 | 32 | 55 | 80 | M28x1.5P | 1.40 |
| BT40 ERA20-100 | 32 | 75 | 100 | M28x1.5P | 1.50 |
| BT40 ERA25-080 | 38 | 55 | 80 | M32x1.5P | 1.40 |
| BT40 ERA25-100 | 38 | 75 | 100 | M32x1.5P | 1.50 |
| BT40 ERA32-080 | 46 | 55 | 80 | M40x1.5P | 1.50 |
| BT40 ERA32-100 | 46 | 75 | 100 | M40x1.5P | 1.80 |
| BT50 ERA11-080 | 22 | 45 | 80 | M18x1.0P | 3.90 |
| BT50 ERA11-110 | 22 | 75 | 110 | M18x1.0P | 4.00 |
| BT50 ERA16-080 | 28 | 45 | 80 | M24x1.0P | 4.00 |
| BT50 ERA16-110 | 28 | 75 | 110 | M24x1.0P | 4.10 |
| BT50 ERA20-090 | 32 | 55 | 90 | M28x1.5P | 4.10 |
| BT50 ERA20-110 | 32 | 75 | 110 | M28x1.5P | 4.20 |
| BT50 ERA25-090 | 38 | 55 | 90 | M32x1.5P | 4.10 |
| BT50 ERA25-110 | 38 | 75 | 110 | M32x1.5P | 4.30 |
| BT50 ERA32-090 | 46 | 55 | 90 | M40x1.5P | 4.20 |
| BT50 ERA32-110 | 46 | 75 | 110 | M40x1.5P | 4.50 |
