SMA 筒状铣刀杆BT / NT 系列

在线咨询

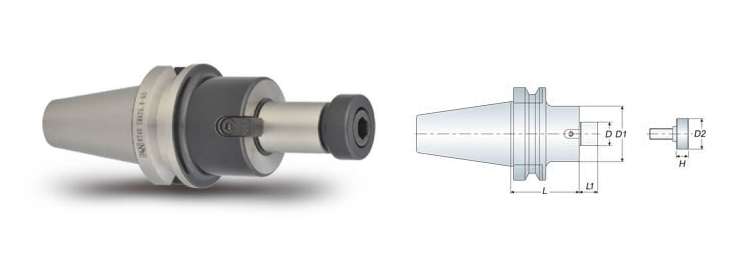

SMA 筒状铣刀杆-1.jpg

特性

规格

每支 SMA 壳型铣刀杆均附有螺丝及挡耳以装配铣刀盘使用

请于订购时，确认 D 规格

型号	D	D1	D2	L	L1	H	重量 (kg)
BT30 SMA15.875/16-045	15.875/16	34	20	45	17	-	0.70
BT30 SMA22.225/22-045	22.225/22	42	28	45	27	-	0.80
BT30 SMA25.4/27-045	25.4/27	50	33	45	36	13	1.00
BT30 SMA25.4/27-060	25.4/27	50	33	60	36	13	1.30
BT40 SMA15.875/16-060	15.875/16	34	20	60	17	-	1.30
BT40 SMA15.875/16-120	15.875/16	34	20	120	17	-	1.90
BT40 SMA22.225/22-060	22.225/22	42	28	60	27	-	1.50
BT40 SMA22.225/22-120	22.225/22	42	28	120	27	-	2.10
BT40 SMA22.225/22-180	22.225/22	42	28	180	27	-	2.80
BT40 SMA25.4/27-045	25.4/27	50	33	45	36	13	1.60
BT40 SMA25.4/27-060	25.4/27	50	33	60	36	13	1.80
BT40 SMA25.4/27-105	25.4/27	50	33	105	36	13	2.60
BT40 SMA25.4/27-150	25.4/27	50	33	150	36	13	3.20
BT40 SMA31.75/32-045	31.75/32	60	40	45	38	13.5	1.90
BT40 SMA31.75/32-060	31.75/32	60	40	60	38	13.5	2.10
BT40 SMA31.75/32-090	31.75/32	60	40	90	38	13.5	2.70
BT40 SMA38.1/40-060	38.1/40	80	50	60	38	15	2.60
BT40 SMA38.1/40-090	38.1/40	80	50	90	38	15	3.20
BT50 SMA15.875/16-075	15.875/16	34	20	75	17	-	4.00
BT50 SMA15.875/16-120	15.875/16	34	20	120	17	-	4.60
BT50 SMA22.225/22-075	22.225/22	42	28	75	27	-	4.30
BT50 SMA22.225/22-120	22.225/22	42	28	120	27	-	5.00
BT50 SMA22.225/22-180	22.225/22	42	28	180	27	-	5.50
BT50 SMA25.4/27-045	25.4/27	50	33	45	36	13	4.30
BT50 SMA25.4/27-075	25.4/27	50	33	75	36	13	4.70
BT50 SMA25.4/27-105	25.4/27	50	33	105	36	13	5.20
BT50 SMA25.4/27-150	25.4/27	50	33	150	36	13	6.00
BT50 SMA31.75/32-045	31.75/32	60	40	45	38	13.5	4.50
BT50 SMA31.75/32-075	31.75/32	60	40	75	38	13.5	5.10
BT50 SMA31.75/32-105	31.75/32	60	40	105	38	13.5	5.50
BT50 SMA38.1/40-045	38.1/40	80	50	45	38	15	4.50
BT50 SMA38.1/40-075	38.1/40	80	50	75	38	15	5.60

Unit: mm
