FMH 平面铣刀杆 - 出水型BT / NT 系列

在线咨询

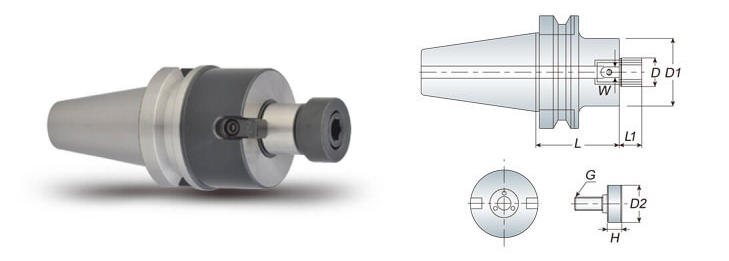

FMH 平面铣刀杆 - 出水型-1.jpg

特性

规格

相关配件

每支 FMA 面铣刀杆均附有螺丝及挡耳以装配面铣刀盘使用

面铣刀盘为另购品

FMH 为订单生产品

型号	D	D1	D2	L	L1	W	H	G	重量 (kg)
BT30 FMH25.4-045	25.4	45	33	45	20	9.5	13	M12	0.90
BT30 FMH25.4-060	25.4	45	33	60	20	9.5	13	M12	1.20
BT30 FMH31.75-045	31.75	58	40	45	22	12.7	13.5	M12	1.30
BT30 FMH22-045	22	48	-	45	18	10	-	M10	0.80
BT30 FMH27-045	27	60	32	45	20	12	13	M12	1.00
BT40 FMH25.4-045	25.4	60	33	45	20	9.5	13	M12	1.70
BT40 FMH25.4-060	25.4	60	33	60	20	9.5	13	M12	2.00
BT40 FMH31.75-045	31.75	70	40	45	22	12.7	13.5	M12	2.30
BT40 FMH31.75-060	31.75	70	40	60	22	12.7	13.5	M12	2.60
BT40 FMH38.1-060	38.1	85	50	60	23	15.9	15	M16	2.80
BT40 FMH16-045	16	38	-	45	17	10	-	M8	1.30
BT40 FMH22-045	22	48	-	45	18	10	-	M10	1.40
BT40 FMH22--060	22	48	-	60	18	10	-	M10	1.60
BT40 FMH27-045	27	60	32	45	20	12	-	M12	1.70
BT40 FMH27-060	27	60	32	60	20	12	-	M12	2.00
BT40 FMH32-045	32	63	41	45	21	14	16	M16	1.80
BT40 FMH32-060	32	63	41	60	21	14	16	M16	2.10
BT50 FMH25.4-045	25.4	60	33	45	20	9.5	13	M12	4.20
BT50 FMH25.4-075/105/150	25.4	60	33	75/105/150	20	9.5	13	M12	4.90/5.30/6.10
BT50 FMH31.75-045	31.75	70	40	45	22	12.7	13.5	M12	4.40
BT50 FMH31.75-075/105/150	31.75	70	40	75/105/150	22	12.7	13.5	M12	5.30/6.20/7.30
BT50 FMH38.1-045	38.1	85	50	45	23	15.9	15	M16	4.50
BT50 FMH38.1-075/105/150	38.1	85	50	75/105/150	23	15.9	15	M16	5.90/7.10/9.50
BT50 FMH16-045	16	38	-	45	17	10	-	M8	3.80
BT50 FMH22-045	22	48	-	45	18	10	-	M10	4.00
BT50 FMH22-075/105/150	22	48	-	75/105/150	18	10	-	M10	4.50/4.80/5.60
BT50 FMH27-045	27	65	32	45	20	12	13	M12	4.30
BT50 FMH27-075/105/150	27	65	32	75/105/150	20	12	13	M12	5.00/5.80/7.20
BT50 FMH32-045	32	73	41	45	21	14	16	M16	4.40
BT50 FMH32-075/105/150	32	73	41	75/105/150	21	14	16	M16	5.40/6.60/9.70
BT50 FMH40-045	40	85	47	45	23	16	15	M16	4.60
BT50 FMH40-075/105	40	85	47	75/105	23	16	15	M16	5.90/6.90

Unit: mm
