FMB 平面铣刀杆BT / NT 系列

在线咨询

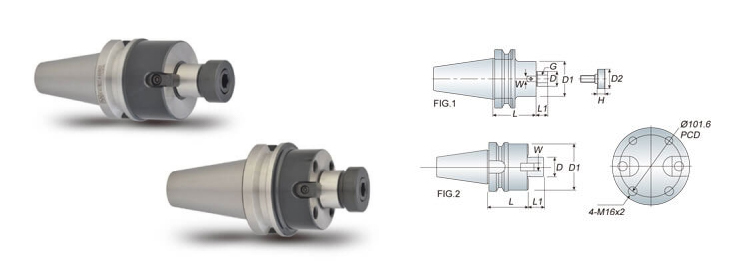

FMA 平面铣刀杆-1.jpg

特性

规格

相关配件

每支 FMA 面铣刀杆均附有螺丝及挡耳以装配面铣刀盘使用

面铣刀盘为另购品

型号	FIG.	D	D1	D2	L	L1	W	H	G	重量 (kg)
BT30 FMB22-045	1	22	46	-	45	18	10	-	M10	0.80
BT30 FMB27-045	1	27	60	32	45	20	12	13	M12	1.00
BT40 FMB16-045	1	16	38	-	45	17	10	-	M8	1.3
BT40 FMB22-045	1	22	48	-	45	18	10	-	M10	1.40
BT40 FMB22-060/090	1	22	48	-	60/90	18	10	-	M10	1.60/2.10
BT40 FMB22-105/125	1	22	48	-	105/125	18	10	-	M10	2.40/2.60
BT40 FMB22-150/200	1	22	48	-	150/200	18	10	-	M10	2.80/3.50
BT40 FMB27-045	1	27	60	32	45	20	12	13	M12	1.70
BT40 FMB27-060	1	27	60	32	60	20	12	13	M12	2.00
BT40 FMB27-090/105	1	27	60	32	90/105	20	12	13	M12	2.60/3.00
BT40 FMB32-045	1	32	63	41	45	21	14	16	M16	1.80
BT40 FMB32-060	1	32	63	41	60	21	14	16	M16	2.10
BT40 FMB32-090/105	1	32	63	41	90/105	21	14	16	M16	3.00/3.30
BT40 FMB40-045	1	40	68	47	45	23	16	15	M16	2.00
BT40 FMB40-060	1	40	68	47	60	23	16	15	M16	2.70
BT50 FMB16-045	1	16	38	-	45	17	10	-	M8	3.8
BT50 FMB22-045	1	22	48	-	45	18	10	-	M10	4.00
BT50 FMB22-075/105	1	22	48	-	75/105	18	10	-	M10	4.50/4.80
BT50 FMB22-125/150	1	22	48	-	125/150	18	10	-	M10	5.20/5.60
BT50 FMB22-175/200	1	22	48	-	175/200	18	10	-	M10	6.00/6.30
BT50 FMB22-250/300	1	22	48	-	250/300	18	10	-	M10	6.90/7.20
BT50 FMB22-350/400	1	22	48	-	350/400	18	10	-	M10	7.70/8.30
BT50 FMB27-045	1	27	65	32	45	20	12	13	M12	4.30
BT50 FMB27-075	1	27	65	32	75	20	12	13	M12	5.00
BT50 FMB27-090/105	1	27	65	32	90/105	20	12	13	M12	5.40/5.80
BT50 FMB27-150/200	1	27	65	32	150/200	20	12	13	M12	7.20/8.90
BT50 FMB32-045	1	32	73	41	45	21	14	16	M16	4.40
BT50 FMB32-075/105	1	32	73	41	75/105	21	14	16	M16	5.40/6.60
BT50 FMB32-150/200	1	32	73	41	150/200	21	14	16	M16	8.00/9.70
BT50 FMB40-045	1/2	40	85	47	45	23	16	15	M16	4.60
BT50 FMB40-075	1/2	40	85	47	75	23	16	15	M16	5.90
BT50 FMB40-105/150	1/2	40	85	47	105/150	23	16	15	M16	6.90/8.60
BT50 FMB60-075	2	60	128.57	-	75	32	25.4	-	-	7.30

Unit: mm
