特性
规格
适用于夹持直柄铣刀,可用在一般铣削加工
刀柄本身锥度型设计，使其拥有较佳的刚性
夹持铣刀之固定螺丝共2个
刀杆本身已装配固定螺丝

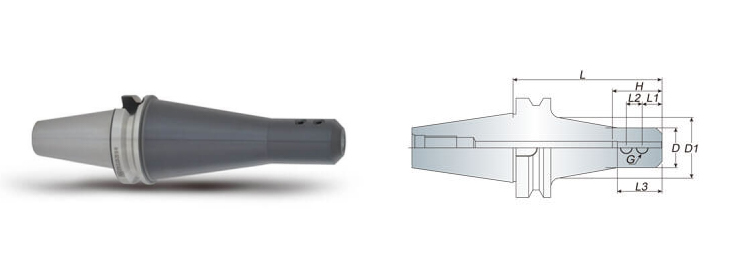

| 型号 | d | D | D1 | L | L1 | L2 | L3 | H | G | 重量 (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| BT50 SLA06-150T | 6 | 25 | 30 | 150 | 12 | 10 | 35 | 28 | M6 | 3.90 |
| BT50 SLA06-200T | 6 | 25 | 32 | 200 | 12 | 10 | 35 | 28 | M6 | 4.20 |
| BT50 SLA08-150T | 8 | 28 | 33 | 150 | 14 | 12 | 40 | 36 | M8 | 3.90 |
| BT50 SLA08-200T | 8 | 28 | 35 | 200 | 14 | 12 | 40 | 36 | M8 | 4.30 |
| BT50 SLA10-150T | 10 | 35 | 40 | 150 | 15 | 14 | 40 | 40 | M10 | 4.30 |
| BT50 SLA10-200T | 10 | 35 | 42 | 200 | 15 | 14 | 40 | 40 | M10 | 4.70 |
| BT50 SLA12-150T | 12 | 40 | 45 | 150 | 20 | 16 | 45 | 45 | M10 | 4.50 |
| BT50 SLA12-200T | 12 | 40 | 47 | 220 | 20 | 16 | 45 | 45 | M10 | 5.10 |
| BT50 SLA16-150T | 16 | 45 | 50 | 150 | 22 | 18 | 50 | 55 | M10 | 4.70 |
| BT50 SLA16-200T | 16 | 45 | 52 | 220 | 22 | 18 | 50 | 55 | M10 | 5.40 |
| BT50 SLA20-150T | 20 | 52 | 57 | 150 | 25 | 20 | 55 | 60 | M12 | 5.10 |
| BT50 SLA20-200T | 20 | 52 | 57 | 200 | 25 | 20 | 55 | 60 | M12 | 5.90 |
| BT50 SLA25-150T | 25 | 55 | 60 | 150 | 25 | 22 | 60 | 65 | M12 | 5.40 |
| BT50 SLA25-200T | 25 | 55 | 60 | 200 | 25 | 22 | 60 | 65 | M12 | 6.40 |
| BT50 SLA25-250T | 25 | 55 | 62 | 250 | 25 | 22 | 60 | 65 | M12 | 7.50 |
| BT50 SLA32-150T | 32 | 60 | 65 | 150 | 30 | 22 | 65 | 70 | M16 | 5.60 |
| BT50 SLA32-200T | 32 | 60 | 65 | 200 | 30 | 22 | 65 | 70 | M16 | 6.70 |
| BT50 SLA32-250T | 32 | 60 | 67 | 250 | 30 | 22 | 65 | 70 | M16 | 8.10 |
