特性
规格
| 筒夹等级 | 跳动精度 - 4 倍直径前 |
|---|---|
| A 级 | ≦ 10μ |
| AA 级 | ≦ 5μ |
请于订购时注明 A 级或 AA 级
例：
SK10-06 AA or SK10E-04 AA
SK10-8PCS AA or SK10E-6PCS AA
筒夹的孔径小于 3mm，其夹持范围为 0.25mm；若大于 3mm 则为 0.5mm

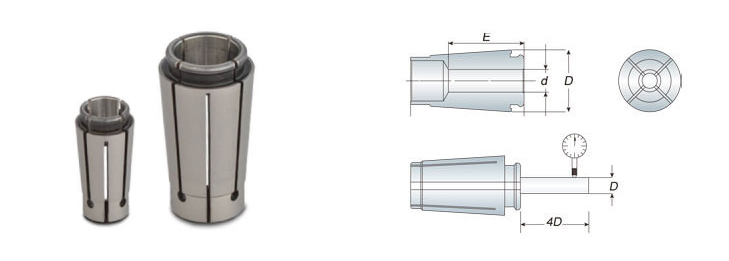

立铣刀专用筒夹
ASK Collet
ASK - E Type
SK06E (approx. 0.006kgs/pc)
| 型号 | d | E | D | L |
|---|---|---|---|---|
| SK06E-03 | 3 | 15 | 10.4 | 25 |
| SK06E-3.175 | 3.175 | 15 | ||
| SK06E-04 | 4 | 16 | ||
| SK06E-06 | 6 | 21 |
Unit: mm
SK10E (approx. 0.02kgs/pc)
| 型号 | d | E | D | L |
|---|---|---|---|---|
| SK10E-03 | 3 | 15 | 15.6 | 31 |
| SK10E-3.175 | 3.175 | 15 | ||
| SK10E-04 | 4 | 20 | ||
| SK10E-05 | 5 | 20 | ||
| SK10E-06 | 6 | 24 | ||
| SK10E-08 | 8 | 24 | ||
| SK10E-10 | 10 | 30.5 |
Unit: mm
SK13E (approx. 0.04kgs/pc)
| 型号 | d | E | D | L |
|---|---|---|---|---|
| SK13E-03 | 3 | 18 | 20 | 39 |
| SK13E-3.175 | 3.175 | 18 | ||
| SK13E-04 | 4 | 20 | ||
| SK13E-05 | 5 | 20 | ||
| SK13E-06 | 6 | 24 | ||
| SK13E-08 | 8 | 28 | ||
| SK13E-10 | 10 | 30 | ||
| SK13E-12 | 12 | 39 |
Unit: mm
SK16E (approx. 0.08kgs/pc)
| 型号 | d | E | D | L |
|---|---|---|---|---|
| SK16E-03 | 3 | 18 | 24.6 | 45 |
| SK16E-3.175 | 3.175 | 18 | ||
| SK16E-04 | 4 | 20 | ||
| SK16E-05 | 5 | 22 | ||
| SK16E-06 | 6 | 25 | ||
| SK16E-08 | 8 | 34 | ||
| SK16E-10 | 10 | 34 | ||
| SK16E-12 | 12 | 34 | ||
| SK16E-16 | 16 | 45 |
Unit: mm
SK20E (approx. 0.015kgs/pc)
| 型号 | d | E | D | L |
|---|---|---|---|---|
| SK20E-04 | 4 | 18 | 29.1 | 54.3 |
| SK20E-05 | 5 | 18 | ||
| SK20E-06 | 6 | 24 | ||
| SK20E-08 | 8 | 32 | ||
| SK20E-10 | 10 | 38 | ||
| SK20E-12 | 12 | 38 | ||
| SK20E-14 | 14 | 39 | ||
| SK20E-16 | 16 | 39 | ||
| SK20E-20 | 20 | 50 |
Unit: mm
SK25E (approx. 0.25kgs/pc)
| 型号 | d | E | D | L |
|---|---|---|---|---|
| SK25E-06 | 6 | 24 | 35.7 | 57 |
| SK25E-08 | 8 | 32 | ||
| SK25E-10 | 10 | 40 | ||
| SK25E-12 | 12 | 42 | ||
| SK25E-14 | 14 | 42 | ||
| SK25E-16 SK25E-18 | 16 18 | 44 44 | ||
| SK25E-20 | 20 | 46 | ||
| SK25E-22 | 22 | 46 | ||
| SK25E-24 | 24 | 46 | ||
| SK25E-25 | 25 | 57 | ||
| SK25E-25.4 | 25.4 | 57 |
Unit: mm
Inch Size
| 型号 | d |
|---|---|
| SK06E | 1/8, 3/16 |
| SK10E | 1/8, 3/16, 1/4, 5/16, 3/8 |
| SK13E | 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2 |
| SK16E | 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8 |
| SK20E | 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4 |
| SK25E | 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 1" |
