ABH 微调精搪刀杆BT / NT 系列

在线咨询

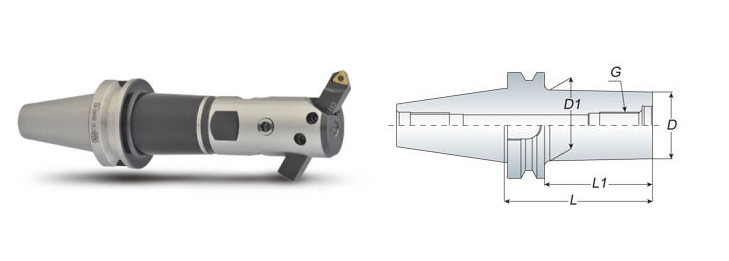

ABH 微调精搪刀杆-1.jpg

特性

规格

相关配件

ABH ( 粗 / 精搪头 ) / ABH-SB 精搪头为另购品

型号	搪孔范围		D	D1	L1	L	G	重量 (kg)
型号	Min.	Max.	D	D1	L1	L	G	重量 (kg)
BT40 ABH18-060	22	32	18	24	35	60	M10x1.5P	1.20
BT40 ABH18-080/100	22	32	18	24	55/75	80/100	M10x1.5P	1.30/1.40
BT40 ABH23-080	28	46	23	29	55	80	M12x1.75P	1.30
BT40 ABH23-120	28	46	23	29	95	120	M12x1.75P	1.50
BT40 ABH30-080	36	60	30	36	55	80	M16x2.0P	1.40
BT40 ABH30-105/130	36	60	30	36	80/105	105/130	M16x2.0P	1.50/1.60
BT40 ABH40-080	46	80	40	48	55	80	M18x2.5P	1.50
BT40 ABH40-105	46	80	40	48	80	105	M18x2.5P	1.90
BT40 ABH40-125/150	46	80	40	48	100/125	125/150	M18x2.5P	2.10/2.40
BT40 ABH-SB50-080	55	73	53	53	55	80	M22x2.5P	1.80
BT40 ABH-SB50-105/130	55	73	53	53	80/105	105/130	M22x2.5P	2.20/2.60
BT40 ABH63-080	70	130	63	63	55	80	M25x2.0P	2.20
BT40 ABH63-105/150	70	130	63	63	80/125	105/150	M25x2.0P	2.90/3.70
BT50 ABH18-080	22	32	18	24	45	80	M10x1.5P	4.00
BT50 ABH18-120	22	32	18	24	85	120	M10x1.5P	4.20
BT50 ABH23-080	28	46	23	29	45	80	M12x1.75P	3.90
BT50 ABH23-120	28	46	23	29	85	120	M12x1.75P	4.20
BT50 ABH30-080	36	60	30	36	45	80	M16x2.0P	4.10
BT50 ABH30-105/130	36	60	30	36	70/95	105/130	M16x2.0P	4.20/4.40
BT50 ABH40-080	46	80	40	48	45	80	M18x2.5P	4.20
BT50 ABH40-105/125	46	80	40	48	70/90	105/125	M18x2.5P	4.40/4.80
BT50 ABH40-150/180	46	80	40	48	115/145	150/180	M18x2.5P	5.20/5.40
BT50 ABH-SB50-080	55	73	53	53	45	80	M22x2.5P	4.50
BT50 ABH-SB50-105/125	55	73	53	53	70/90	105/125	M22x2.5P	4.90/5.10
BT50 ABH-SB50-150/180	55	73	53	53	115/145	150/180	M22x2.5P	5.70/6.00
BT50 ABH63-080	70	130	63	63	45	80	M25x2.0P	4.50
BT50 ABH63-105	70	130	63	68	70	105	M25x2.0P	5.30
BT50 ABH63-150/180	70	130	63	68	115/150	150/180	M25x2.0P	6.70/7.50
BT50 ABH63-200/230	70	130	63	68	165/195	200/230	M25x2.0P	8.00/8.40
