特性
规格
相关配件

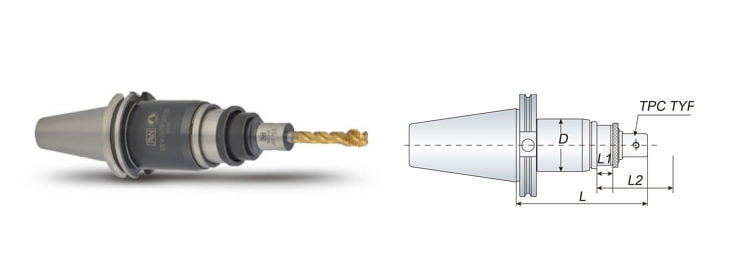

L1: Compression, L2: Tension

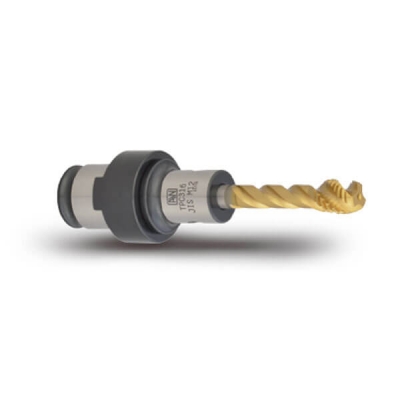

Quick change: Push back on the holder sleeve, and the tap collet is removable easily.
| 型号 | D | L | L1 | L2 | 攻牙范围 | 筒夹类型 | 重量(kg) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | |||
| CAT40 TPM316 | 48 | 1.890" | 135 | 5.315" | 10 | 0.394" | 20 | 0.787" | M3~M16 | 3/32"~5/8" | TPC316 | 1.60 |
| CAT50 TPM316 | 48 | 1.890" | 135 | 5.315" | 10 | 0.394" | 20 | 0.787" | M3~M16 | 3/32"~5/8" | TPC316 | 3.50 |
| CAT40 TPM830 | 66 | 2.598" | 175 | 6.890" | 10 | 0.394" | 25 | 0.984" | M8~M30 | 5/16"~11/8" | TPC830 | 2.90 |
| CAT50 TPM830 | 66 | 2.598" | 175 | 6.890" | 10 | 0.394" | 25 | 0.984" | M8~M30 | 5/16"~11/8" | TPC830 | 3.80 |
