特性
规格

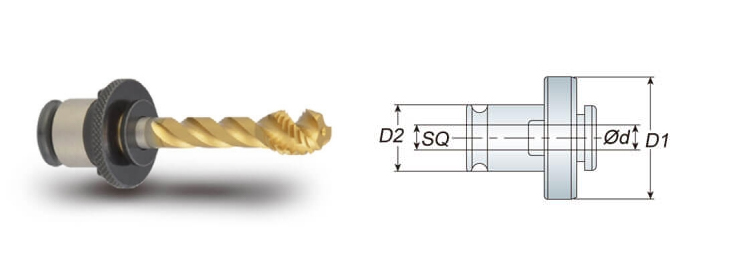

请于订购时，确认筒夹为扭力丝攻筒夹(FIG.1) 或刚性丝攻筒夹(FIG.2) 以及筒夹之柄径(Ød) 和四角孔(SQ/ □ ).
ATC 丝攻筒夹另有加长型 L=100 可供选购
| 型号 | Tap Diameter (D) | D1 | D2 | 重量 (kg) |
|---|---|---|---|---|
| ATC312-D | M03,M04,M05,M06,M08,M10,M12,M14 | 32 | 19 | 0.30 |
| W1/8,W3/16,W1/4,W5/16,W3/8,W7/16 | 30 | 19 | 0.30 |
Unit: mm
For example:
-t.jpg "https://www.annwaytools.com/proimages/product/tool-holder/th-1/th-1-121-4(E)-t.jpg")
ATC312 丝攻筒夹规格表
| JIS | Ød | □ |
|---|---|---|
| ATC312 M03 W1/8 | 4 | 3.2 |
| ATC312 M04 | 5 | 4 |
| ATC312 M05 W3/16 | 5.5 | 4.5 |
| ATC312 M06 W1/4 | 6 | 4.5 |
| ATC312 M08 | 6.2 | 5 |
| ATC312 M10 W3/8 | 7 | 5.5 |
| ATC312 M12 | 8.5 | 6.5 |
| ATC312 M14 | 10.5 | 8 |
| ATC312 W7/16 PT1/8 | 8 | 6 |
| ATC312 W1/2 | 9 | 7 |
| ATC312 W5/16 | 6.1 | 5 |
Unit: mm
| ISO | Ød | □ |
|---|---|---|
| ATC312 M03 | 3.15 | 2.5 |
| ATC312 M04 | 4 | 3.15 |
| ATC312 M05 | 5 | 4 |
| ATC312 M06 | 6.3 | 5 |
| ATC312 M08 | 8 | 6.3 |
| ATC312 M10 | 10 | 8 |
| ATC312 M12 | 9 | 7.1 |
Unit: mm
| DIN371 | Ød | □ |
|---|---|---|
| ATC312 M03 | 3.5 | 2.7 |
| ATC312 M04 | 4.5 | 3.4 |
| ATC312 M05 M06 | 6 | 4.9 |
| ATC312 M08 | 8 | 6.2 |
| ATC312 M10 | 10 | 8 |
Unit: mm
| DIN376 | Ød | □ |
|---|---|---|
| ATC312 M04 | 2.8 | 2.1 |
| ATC312 M05 | 3.5 | 2.7 |
| ATC312 M06 | 4.5 | 3.4 |
| ATC312 M08 | 6 | 4.9 |
| ATC312 M10 | 7 | 5.5 |
| ATC312 M12 | 9 | 7 |
Unit: mm
