特性
规格

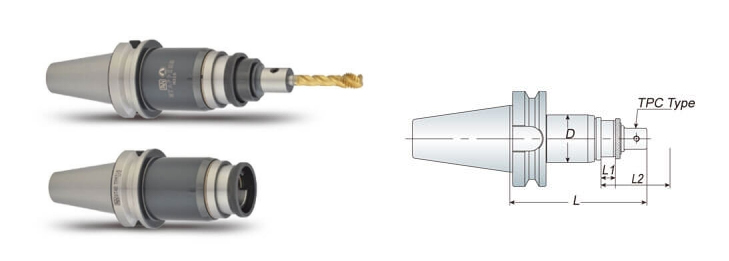

L1: Compression, L2: Tension
Quick change: Push back on the holder sleeve, and the tap collet is removable easily.
| 型号 | D | L | L1 | L2 | 攻牙范围 | 筒夹类型 | 重量 (kg) |
|---|---|---|---|---|---|---|---|
| BT30 TPM316 | 48 | 140 | 10 | 20 | M3~M16 | TPC316 | 1.20 |
| BT40 TPM316 | 48 | 140 | 10 | 20 | M3~M16 | TPC316 | 1.70 |
| BT50 TPM316 | 48 | 150 | 10 | 20 | M3~M16 | TPC316 | 4.50 |
| BT30 TPM830 | 66 | 190 | 10 | 25 | M8~M30 | TPC830 | 2.30 |
| BT40 TPM830 | 66 | 180 | 10 | 25 | M8~M30 | TPC830 | 2.70 |
| BT50 TPM830 | 66 | 180 | 10 | 25 | M8~M30 | TPC830 | 4.80 |
| BT50 TPG830 | 75 | 265 | 10 | 80 | M8~M30 | TPC830 | 8.40 |
