特性
规格
端面出水
刀杆加热器规格请参考感应热缩式烧结机
刀具限用 h6 钨钢刀具

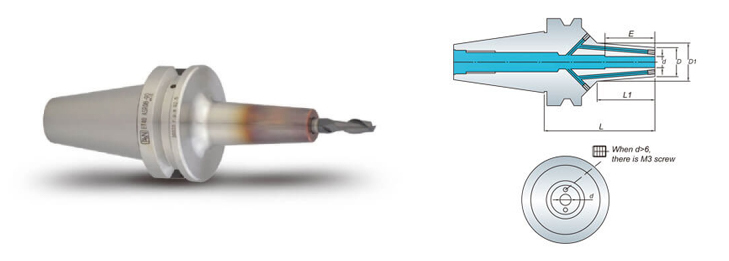

| 型号 | d | D | D1 | L | L1 | E | 重量 (kg) |
|---|---|---|---|---|---|---|---|
| BT40 ASR04-090/120-CL | 4 | 14 | 22/27 | 90/120 | 49/82 | 22 | 1.10/1.40 |
| BT40 ASR06-090/120-CL | 6 | 21 | 29/35 | 90/120 | 53/86 | 26 | 1.20/1.50 |
| BT40 ASR08-090/120-CL | 8 | 21 | 29/35 | 90/120 | 53/86 | 26 | 1.20/1.50 |
| BT40 ASR10-090/120-CL | 10 | 24 | 33/38 | 90/120 | 55/87 | 32 | 1.30/1.60 |
| BT40 ASR12-090/120-CL | 12 | 24 | 33/38 | 90/120 | 55/87 | 36 | 1.30/1.60 |
| BT40 ASR16-090/120-CL | 16 | 27 | 36/41 | 90/120 | 56/89 | 38 | 1.30/1.60 |
| BT50 ASR06-100/120-CL | 6 | 21 | 29/32 | 100/120 | 44/68 | 26 | 3.80/3.90 |
| BT50 ASR08-100/120-CL | 8 | 21 | 29/32 | 100/120 | 44/68 | 26 | 3.80/3.90 |
| BT50 ASR10-100/120-CL | 10 | 24 | 32/35 | 100/120 | 41/65 | 32 | 3.90/4.00 |
| BT50 ASR12-100/120-CL | 12 | 24 | 32/35 | 100/120 | 41/65 | 36 | 3.90/4.00 |
| BT50 ASR16-100/120-CL | 16 | 27 | 35/39 | 100/120 | 44/66 | 38 | 3.90/4.00 |
| BT50 ASR20-100/120-CL | 20 | 33 | 42/45 | 100/120 | 50/67 | 42 | 4.00/4.10 |
