Specification

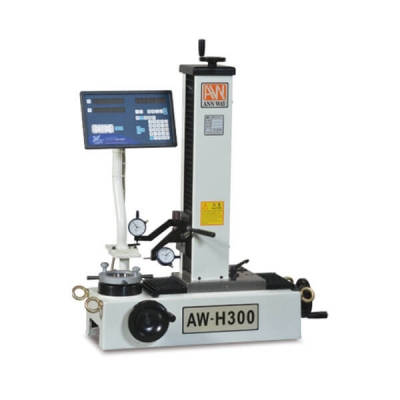

| Model No. | AW-H300 | ||
|---|---|---|---|
| Range of Measurement | Diameter(X): 300mm | Height (Y): 30~400mm | |
| Resolution-X Axis | 0.005mm | ||
| Resolution-Y Axis | 0.005mm | ||
| Taper Shank | Standard: #50 | Standard: #50 #40,#30 | |
| Power Supply | AC110V/220V | 50HZ/60HZ | |
| Dimension (mm) | 860Lx560Wx950H | ||
| Weight | N.W. 105kgs / G.W. 140kgs | ||
| Standard Accessories | Readout Device | Digital Readout | |
| Test Bar | BT50 Dia: 40mm L: 315mm | ||
| Dial Gauge | 2PCS | ||
Unit: mm
