Features
Specification
Each turning holder is assembled a coolant supply unit.
The nozzle of coolant supply unit could be adjusted
The maximum pressure of coolant supply unit is 1.5MPa
Notice: To use on the machine with CTS system, the liquid will be possible to spurt from the spindle as the wrong operation. Therefore, it must be used with coolant supply unit together. => refer to P162

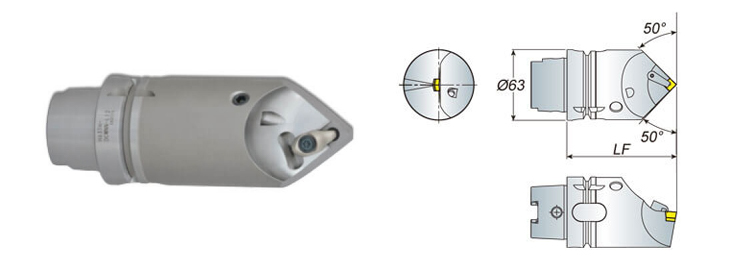

| Model No. | L | Insert | Pin | Shim | Wrench | Screw | Clamp | Wrench | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|
| HSK63T DCMNN-100 | 100 | CN..1204.. | MLP46-A | CMS432 | PL25 | MS630 | MC620 | PL30 | 1.70 |
| HSK63T DCMNN-140 | 140 | 2.70 |
Unit: mm
