BH Square Turning Holder (For external turning and cutting off)HSK-T SERIES

Consult

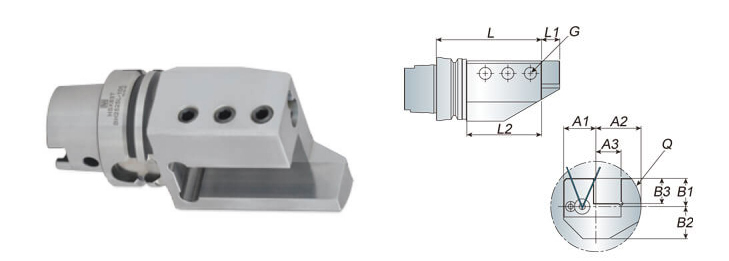

BH 方型刀具用刀杆 ( 外径 . 切断加工用 )-1.jpg

Specification

Model No.	L	L1	L2	A1	A2	A3	B1	B2	B3	G	Q	Weight(kg)
HSK63T BH2020R-105	105	20	70	32	45	20	33	32	20	M12	90	2.70
HSK63T BH2020L-105	105	20	70	32	45	20	33	32	20	M12	90	2.70
HSK63T BH2525R-105	105	20	70	32	45	25	28	32	25	M12	90	2.70
HSK63T BH2525L-105	105	20	70	32	45	25	28	32	25	M12	90	2.70
HSK100T BH2525R-150	150	20	70	37	59	25	48	43	25	M12	118	9.10
HSK100T BH2525L-150	150	20	70	37	59	25	48	43	25	M12	118	9.10

Unit: mm
