Features
Specification
Accessories
Face mill cutter must be ordered separately.

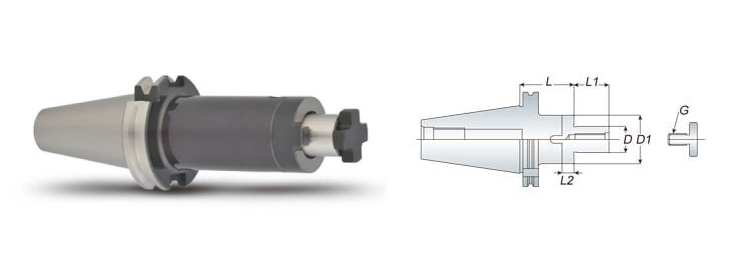

| Model No. | D | D1 | L | L1 | L2 | G | Weight(kg) |
|---|---|---|---|---|---|---|---|
| SK40 CS16-055 | 16 | 32 | 55 | 17 | 10 | M08 | 1.20 |
| SK40 CS22-055 | 22 | 40 | 55 | 19 | 12 | M10 | 1.30 |
| SK40 CS27-055 | 27 | 48 | 55 | 21 | 12 | M12 | 1.60 |
| SK40 CS32-060 | 32 | 58 | 60 | 24 | 14 | M16 | 2.20 |
| SK40 CS40-060 | 40 | 70 | 60 | 27 | 14 | M20 | 2.60 |
| SK50 CS16-055 | 16 | 32 | 55 | 17 | 10 | M08 | 3.10 |
| SK50 CS22-055 | 22 | 40 | 55 | 19 | 12 | M10 | 3.20 |
| SK50 CS27-055 | 27 | 48 | 55 | 21 | 12 | M12 | 3.50 |
| SK50 CS32-055 | 32 | 58 | 55 | 24 | 14 | M16 | 4.00 |
| SK50 CS40-055 | 40 | 70 | 55 | 27 | 14 | M20 | 4.40 |
Unit: mm
