MTB Morse Taper HolderSK SERIES DIN69871A

Consult

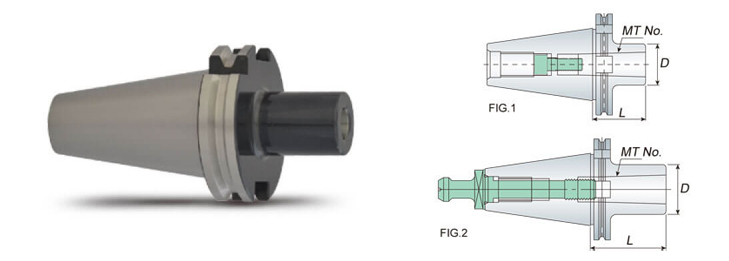

MTB 莫氏锥度刀杆 - B 型-1.jpg

Features

Specification

The tool holder for morse taper shank with internal draw bolt thread.

Model No.	FIG.	MT. No.	D	L	Capacity			Weight(kg)
Model No.	FIG.	MT. No.	D	L	Drill	Reamer	End Mill	Weight(kg)
SK40 MTB1-050	1	MTB1	25	50	2~14	5~14	10~14	1.00
SK40 MTB2-050	1	MTB2	32	50	14~23	14.5~23	16~22	1.10
SK40 MTB3-070	1	MTB3	40	70	23~32	24~32	24~32	1.20
SK40 MTB4-090	2	MTB4	50	90	32~50	32~50	35~50	1.40
SK50 MTB1-045	1	MTB1	25	45	2~14	5~14	10~14	2.90
SK50 MTB2-060	1	MTB2	32	60	14~23	14.5~23	16~22	3.00
SK50 MTB3-065	1	MTB3	40	65	23~32	24~32	24~32	3.10
SK50 MTB4-095	1	MTB4	50	95	32~50	32~50	35~50	3.50
SK50 MTB5-105	2	MTB5	65	105	50~75	50	40~75	4.10

Unit: mm
