FMH Face Mill Holder - Coolant TypeBT / NT SERIES

Consult

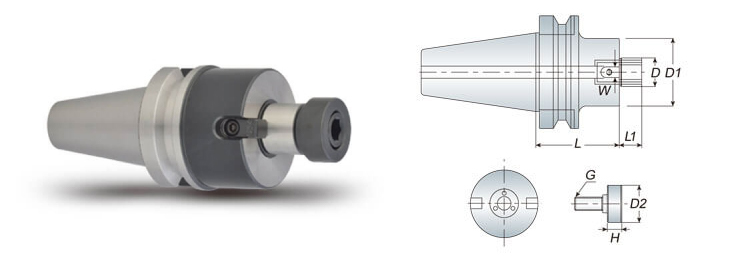

FMH 平面铣刀杆 - 出水型-1.jpg

Features

Specification

Accessories

Face mill holder equips with screw and drive keys to assemble the face mill cutter to the holder.

Face mill cutter must be ordered separately.

FMH is produced by order.

Model No.	D	D1	D2	L	L1	W	H	G	Weight (kg)
BT30 FMH25.4-045	25.4	45	33	45	20	9.5	13	M12	0.90
BT30 FMH25.4-060	25.4	45	33	60	20	9.5	13	M12	1.20
BT30 FMH31.75-045	31.75	58	40	45	22	12.7	13.5	M12	1.30
BT30 FMH22-045	22	48	-	45	18	10	-	M10	0.80
BT30 FMH27-045	27	60	32	45	20	12	13	M12	1.00
BT40 FMH25.4-045	25.4	60	33	45	20	9.5	13	M12	1.70
BT40 FMH25.4-060	25.4	60	33	60	20	9.5	13	M12	2.00
BT40 FMH31.75-045	31.75	70	40	45	22	12.7	13.5	M12	2.30
BT40 FMH31.75-060	31.75	70	40	60	22	12.7	13.5	M12	2.60
BT40 FMH38.1-060	38.1	85	50	60	23	15.9	15	M16	2.80
BT40 FMH16-045	16	38	-	45	17	10	-	M8	1.30
BT40 FMH22-045	22	48	-	45	18	10	-	M10	1.40
BT40 FMH22--060	22	48	-	60	18	10	-	M10	1.60
BT40 FMH27-045	27	60	32	45	20	12	-	M12	1.70
BT40 FMH27-060	27	60	32	60	20	12	-	M12	2.00
BT40 FMH32-045	32	63	41	45	21	14	16	M16	1.80
BT40 FMH32-060	32	63	41	60	21	14	16	M16	2.10
BT50 FMH25.4-045	25.4	60	33	45	20	9.5	13	M12	4.20
BT50 FMH25.4-075/105/150	25.4	60	33	75/105/150	20	9.5	13	M12	4.90/5.30/6.10
BT50 FMH31.75-045	31.75	70	40	45	22	12.7	13.5	M12	4.40
BT50 FMH31.75-075/105/150	31.75	70	40	75/105/150	22	12.7	13.5	M12	5.30/6.20/7.30
BT50 FMH38.1-045	38.1	85	50	45	23	15.9	15	M16	4.50
BT50 FMH38.1-075/105/150	38.1	85	50	75/105/150	23	15.9	15	M16	5.90/7.10/9.50
BT50 FMH16-045	16	38	-	45	17	10	-	M8	3.80
BT50 FMH22-045	22	48	-	45	18	10	-	M10	4.00
BT50 FMH22-075/105/150	22	48	-	75/105/150	18	10	-	M10	4.50/4.80/5.60
BT50 FMH27-045	27	65	32	45	20	12	13	M12	4.30
BT50 FMH27-075/105/150	27	65	32	75/105/150	20	12	13	M12	5.00/5.80/7.20
BT50 FMH32-045	32	73	41	45	21	14	16	M16	4.40
BT50 FMH32-075/105/150	32	73	41	75/105/150	21	14	16	M16	5.40/6.60/9.70
BT50 FMH40-045	40	85	47	45	23	16	15	M16	4.60
BT50 FMH40-075/105	40	85	47	75/105	23	16	15	M16	5.90/6.90

Unit: mm
