SLA End Mill HolderBT / NT SERIES

Consult

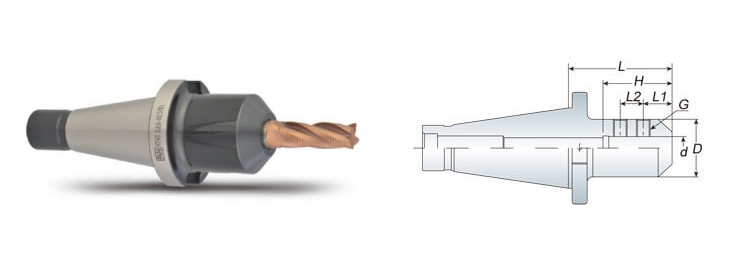

SLA 侧固端铣刀杆-2-1.jpg

Features

Specification

When ordering, please specify the draw bolt with inch size or metric size.

For straight shank end mill.

End mill is held by two set screws.

End mill holder comes equipped with set screws.

Model No.	d	D	L	L1	L2	H	G	Draw Bolt	Weight (kg)
NT30 SLA06-055	6	25	55	12	10	32	M6	1/2"-12 M12x1.75P	0.60
NT30 SLA08-055	8	28	55	14	12	36	M8		0.60
NT30 SLA10-055	10	35	55	15	14	40	M10		0.65
NT30 SLA12-055	12	40	55	20	15	45	M10		0.80
NT30 SLA16-060	16	45	60	22	18	50	M10		0.90
NT30 SLA20-065	20	50	65	25	20	60	M12		1.00
NT30 SLA25-075	25	55	75	25	22	65	M12		1.30
NT40 SLA06-055	6	25	55	12	10	32	M6	5/8"-11 M16x2.0P	1.10
NT40 SLA08-055	8	28	55	14	12	36	M8		1.10
NT40 SLA10-055	10	35	55	15	14	40	M10		1.20
NT40 SLA12-055	12	40	55	20	15	45	M10		1.20
NT40 SLA16-060	16	45	60	22	16	50	M10		1.35
NT40 SLA20-065	20	50	65	20	18	60	M12		1.50
NT40 SLA25-075	25	55	75	20	22	65	M12		1.75
NT40 SLA32-090	32	60	90	30	22	70	M16		2.10
NT40 SLA42-105	42	80	105	32	24	80	M16		3.60
NT50 SLA06-090	6	25	90	12	10	32	M6	1"-8 M24x3.0P	3.10
NT50 SLA08-090	8	28	90	14	12	36	M8		3.10
NT50 SLA10-090	10	35	90	15	14	40	M10		3.15
NT50 SLA12-090	12	40	90	20	16	45	M10		3.30
NT50 SLA16-090	16	45	90	22	18	50	M10		3.60
NT50 SLA20-090	20	50	90	25	20	60	M12		3.65
NT50 SLA20-150	20	50	150	25	20	60	M12		4.70
NT50 SLA25-090	25	55	90	25	22	65	M12		3.80
NT50 SLA25-150	25	55	150	25	22	65	M12		4.90
NT50 SLA32-090	32	60	90	30	22	70	M16		4.00
NT50 SLA32-150	32	60	150	30	22	70	M16		5.30
NT50 SLA32-200	32	60	200	30	22	70	M16		6.30
NT50 SLA42-105	42	80	105	32	24	80	M16		5.10
NT50 SLA50.8-105	50.8	95	105	35	25	90	M20		6.10

Unit: mm
