SLA End Mill Tool Holder - T TypeBT / NT SERIES

Consult

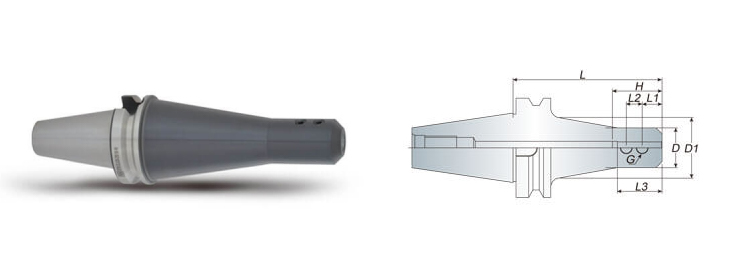

SLA 侧固端铣刀杆 -T 型-1.jpg

Features

Specification

For straight shank end mill.

The holder's shank is with the taper design to make it will the better rigidityEnd mill holder comes equipped with set screws.

End mill is held by two set screws.

End mill tool holder comes equipped with set screws.

Model No.	d	D	D1	L	L1	L2	L3	H	G	Weight (kg)
BT50 SLA06-150T	6	25	30	150	12	10	35	28	M6	3.90
BT50 SLA06-200T	6	25	32	200	12	10	35	28	M6	4.20
BT50 SLA08-150T	8	28	33	150	14	12	40	36	M8	3.90
BT50 SLA08-200T	8	28	35	200	14	12	40	36	M8	4.30
BT50 SLA10-150T	10	35	40	150	15	14	40	40	M10	4.30
BT50 SLA10-200T	10	35	42	200	15	14	40	40	M10	4.70
BT50 SLA12-150T	12	40	45	150	20	16	45	45	M10	4.50
BT50 SLA12-200T	12	40	47	220	20	16	45	45	M10	5.10
BT50 SLA16-150T	16	45	50	150	22	18	50	55	M10	4.70
BT50 SLA16-200T	16	45	52	220	22	18	50	55	M10	5.40
BT50 SLA20-150T	20	52	57	150	25	20	55	60	M12	5.10
BT50 SLA20-200T	20	52	57	200	25	20	55	60	M12	5.90
BT50 SLA25-150T	25	55	60	150	25	22	60	65	M12	5.40
BT50 SLA25-200T	25	55	60	200	25	22	60	65	M12	6.40
BT50 SLA25-250T	25	55	62	250	25	22	60	65	M12	7.50
BT50 SLA32-150T	32	60	65	150	30	22	65	70	M16	5.60
BT50 SLA32-200T	32	60	65	200	30	22	65	70	M16	6.70
BT50 SLA32-250T	32	60	67	250	30	22	65	70	M16	8.10

Unit: mm
