Features
Specification
C-type wrench is attached for each ASC milling chuck.
ASC Milling Chuck with nut for bearing wrench is available.
Please change name from ASC to ASG of each model no. when ordering.
Example: CAT40 ASG1"-3.75"

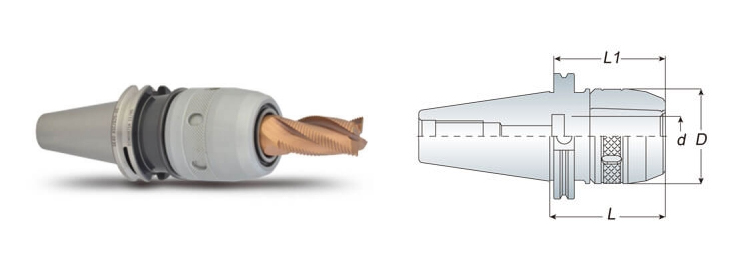

| Model No. | Clamping Range | d | D | L | L1 | Collet Type | Weight(kg) |
|---|---|---|---|---|---|---|---|
| CAT40 ASC3/4"- 3.75" | 1/4"~3/4" | 3/4" | 2.13" | 3.75" | 2.83" | SC3/4" | 2.10 |
| CAT40 ASC1"- 3.75" | 1/4"~1" | 1" | 2.28" | 3.75" | 3.35" | SC1" | 1.90 |
| CAT40 ASC1-1/4"- 3.75" | 1/4"~1-1/4" | 1-1/4" | 2.67" | 3.75" | 3.74" | SC1-1/4" | 2.20 |
| CAT50 ASC1"- 3.75" | 1/4"~1" | 1" | 2.28" | 3.75" | 3.35" | SC1" | 4.10 |
| CAT50 ASC1-1/4"- 4.15" | 1/4"~1-1/4" | 1-1/4" | 2.67" | 4.15" | 3.74" | SC1-1/4" | 4.70 |
Unit: mm
