Features
Specification
C-type wrench is attached for each ASC milling chuck.
Balancing: 30,000 r.p.m G2.5

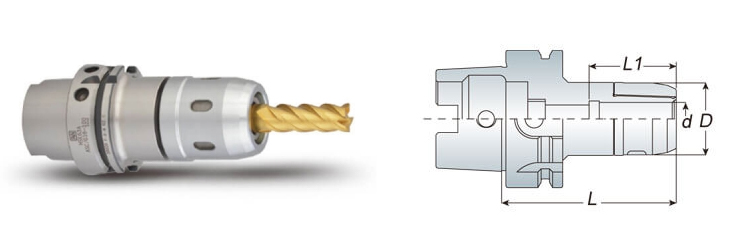

| Model No. | Clamping Range | d | D | L | L1 | Collet Type | Weight(kg) |
|---|---|---|---|---|---|---|---|
| HSK50A ASC16-100 | 3~16 | 16 | 46 | 100 | 65 | SC16 | 0.80 |
| HSK63A ASC16-080 | 3~16 | 16 | 46 | 80 | 65 | SC16 | 1.30 |
| HSK63A ASC16-100 | 3~16 | 16 | 46 | 100 | 65 | SC16 | 1.70 |
| HSK63A ASC20-095 | 4~20 | 20 | 53 | 95 | 72 | SC20 | 1.90 |
| HSK100A ASC16-115 | 3~16 | 16 | 46 | 115 | 65 | SC16 | 2.90 |
| HSK100A ASC16-135 | 3~16 | 16 | 46 | 135 | 65 | SC16 | 3.20 |
| HSK100A ASC20-115 | 4~20 | 20 | 53 | 115 | 72 | SC20 | 3.20 |
| HSK100A ASC20-135 | 4~20 | 20 | 53 | 135 | 72 | SC20 | 3.80 |
| HSK100A ASC20-165 | 4~20 | 20 | 53 | 165 | 72 | SC20 | 4.60 |
