ER Spring Collet ChuckABT SERIES

Consult

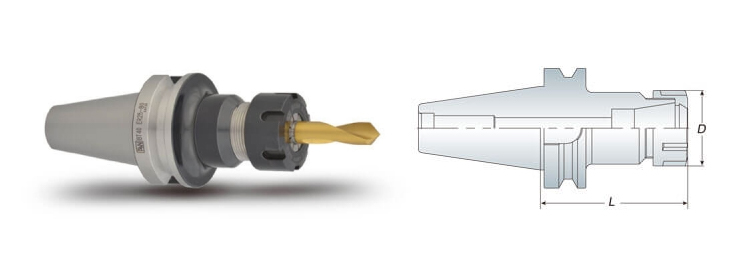

ER 弹性筒夹本体-CAT.jpg

Features

Specification

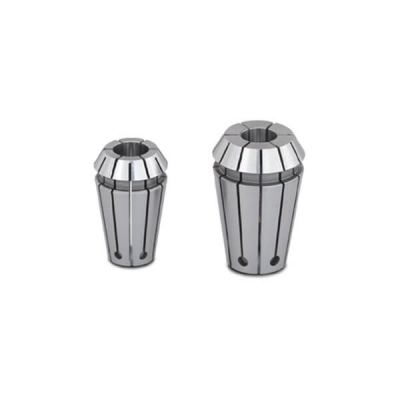

Accessories

ER collet chuck with the ﬂexibility that can clamp drill, reamers, end mills and taps.

ER16 / ER20 / ER25 / ER32 / ER40 are also suitable for ER bearing nut and wrench.

Wrench must be ordered separately.

Balancing: 30,000 r.p.m G2.5

ABT-ER is produced by order.

Model No.	Clamping Ranged	D	L	Collet Type	Wrench	Weight(kg)
ABT30 ER16-060	1~10	28	60	ER16	WER16	0.60
ABT30 ER20-060	1~13	34	60	ER20	WER20	0.60
ABT30 ER25-060	2~16	42	60	ER25	WER25	0.70
ABT30 ER32-060	2~20	50	60	ER32	WER32	0.75
ABT40 ER16-100	1~10	28	100	ER16	WER16	1.40
ABT40 ER20-100	1~13	34	100	ER20	WER20	1.50
ABT40 ER25-100	2~16	42	100	ER25	WER25	1.70
ABT40 ER32-100	2~20	50	100	ER32	WER32	1.80
ABT40 ER40-100	3~26	63	100	ER40	WER40	2.20
ABT50 ER16-100	1~10	28	100	ER16	WER16	4.10
ABT50 ER16-150	1~10	28	150	ER16	WER16	4.30
ABT50 ER20-100	1~13	34	100	ER20	WER20	4.20
ABT50 ER20-150	1~13	34	150	ER20	WER20	4.50
ABT50 ER25-100	2~16	42	100	ER25	WER25	4.20
ABT50 ER25-150	2~16	42	150	ER25	WER25	4.80
ABT50 ER32-100	2~20	50	100	ER32	WER32	4.40
ABT50 ER32-150	2~20	50	150	ER32	WER32	5.20
ABT50 ER40-100	3~26	63	100	ER40	WER40	4.70
ABT50 ER40-150	3~26	63	150	ER40	WER40	5.90
