MER Spring Collet ChuckCAT SERIES

Consult

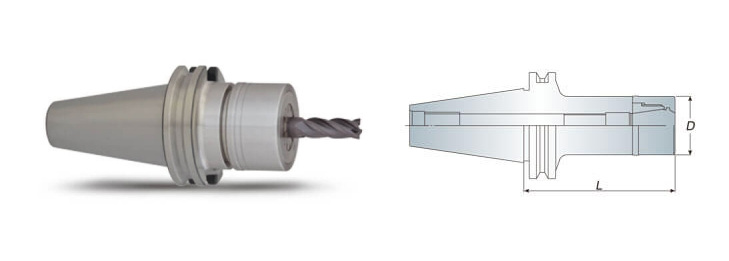

MER 弹性筒夹本体-CAT-1.jpg

Features

Specification

Accessories

MER has more contact area between holder and collet to make better radial cutting force than standard ER.

Special design of MER High speed bearing nut, the clamping power is better than Standard ER type.

MER system are suitable for high speed and high precision cutting.

Suitable to use with ER-E type collet, the cutting condition will be excellent.

Also could be used with standard ER collet, the clamping range change to 0.5mm from 1mm

Ex. MER20 holder + ER20 06 collet => Clamping range: 6~5.5mm

WER..G bearing wrench must be ordered separately.

ER Holder + ER Collet
MER Holder + ER Collet
MER Holder + ER-E Type Collet

The design of deeper gauge line for MER holder. Recommend using ER-E type collet into the body (holder). The increasing length of contact area between collet and holder for improved clamping force.

Model No.	Clamping Ranged	D	L	Wrench	Weight(kg)
CAT40 MER16-3.00"	1~10	30	3.00"	WER16G	1.40
CAT40 MER16-4.00"	1~10	30	4.00"	WER16G	1.50
CAT40 MER16-5.00"	1~10	30	5.00"	WER16G	1.60
CAT40 MER16-6.00"	1~10	30	6.00"	WER16G	1.70
CAT 40 MER20-3.00"	1~13	35	3.00"	WER20G	1.40
CAT 40 MER20-4.00"	1~13	35	4.00"	WER20G	1.50
CAT 40 MER20-5.00"	1~13	35	5.00"	WER20G	1.60
CAT 40 MER20-6.00"	1~13	35	6.00"	WER20G	1.80
CAT 40 MER25-3.00"	2~16	40	3.00"	WER25G	1.50
CAT 40 MER25-4.00"	2~16	40	4.00"	WER25G	1.80
CAT 40 MER25-5.00"	2~16	40	5.00"	WER25G	1.90
CAT 40 MER25-6.00"	2~16	40	6.00"	WER25G	2.10
CAT 40 MER32-3.00"	2~20	50	3.00"	WER32G	1.50
CAT 40 MER32-4.00"	2~20	50	4.00"	WER32G	1.90
CAT 40 MER32-5.00"	2~20	50	5.00"	WER32G	2.20
CAT 40 MER32-6.00"	2~20	50	6.00"	WER32G	2.30
CAT50 MER16-4.00"	1~10	30	4.00"	WER16G	3.30
CAT50 MER16-5.00"	1~10	30	5.00"	WER16G	3.40
CAT50 MER16-6.00"	1~10	30	6.00"	WER16G	3.60
CAT50 MER20-4.00"	1~13	35	4.00"	WER20G	3.50
CAT50 MER20-5.00"	1~13	35	5.00"	WER20G	3.60
CAT50 MER20-6.00"	1~13	35	6.00"	WER20G	3.80
CAT50 MER25-4.00"	2~16	40	4.00"	WER25G	3.60
CAT50 MER25-5.00"	2~16	40	5.00"	WER25G	3.70
CAT50 MER25-6.00"	2~16	40	6.00"	WER25G	3.90
CAT50 MER32-4.00"	2~20	50	4.00"	WER32G	3.60
CAT50 MER32-5.00"	2~20	50	5.00"	WER32G	3.70
CAT50 MER32-6.00"	2~20	50	6.00"	WER32G	3.90

Unit: mm
