Features
Specification

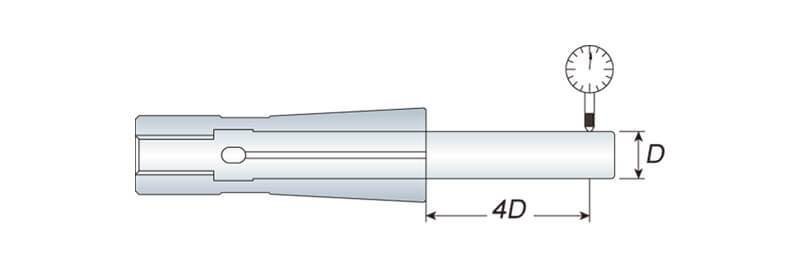

| Collet Grade | Runout - Max μ 4 4xD |
|---|---|
| A | ≦ 10μ |
| AA | ≦ 5μ |
When ordering, please pecify the collet grade with A or AA.
ADS collet + tool
LDS collet + tool

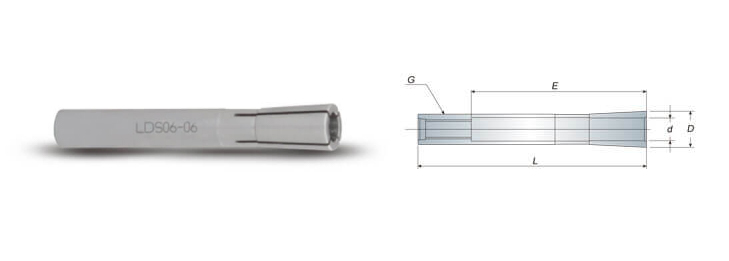

| Model No. | d | D | L | E | G | Weight (kg) |
|---|---|---|---|---|---|---|
| LDS06-02 | 2 | 9.6 | 60 | 46 | M5x0.8P | 0.02 |
| LDS06-03 | 3 | 9.6 | 60 | 46 | M5x0.8P | 0.02 |
| LDS06-3.175 | 3.175 | 9.6 | 60 | 46 | M5x0.8P | 0.02 |
| LDS06-04 | 4 | 9.6 | 60 | 46 | M5x0.8P | 0.02 |
| LDS06-05 | 5 | 9.6 | 60 | 46 | M5x0.8P | 0.02 |
| LDS06-06 | 6 | 9.6 | 60 | 46 | M5x0.8P | 0.02 |
