Features
Specification
| Collet Grade | Runout - Max μ 4xD |
|---|---|
| A | ≦ 10μ |
| AA | ≦ 5μ |
When ordering, please specify the collet grade with A or AA.
For example: SK10-06 AA or SK10E-04 AA,
SK10-8PCS AA or SK10E-6PCS AA

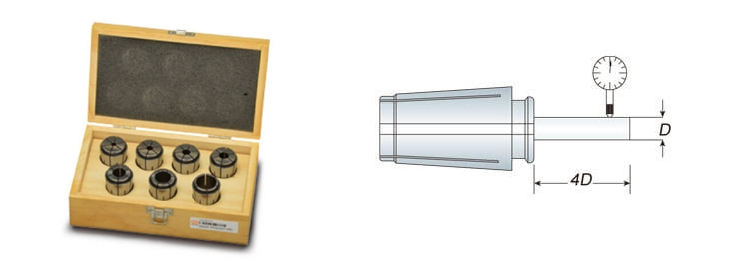

SK COLLET SET FOR END MILL upon your request.
| Model No. | Size | Weight (kg) |
|---|---|---|
| SK10-8PCS | 3,4,5,6,7,8,9,10 | 0.40 |
| SK13-7PCS | 3,4,5,6,8,10,12 | 0.80 |
| SK16-7PCS | 3,4,6,8,10,12,16 | 1.00 |
| SK25-7PCS | 6,8,10,12,16,20,25 | 2.10 |
Unit: mm
