Home >> Products >> Collet Chuck

ER Clamping NutBT / NT SERIES

Consult

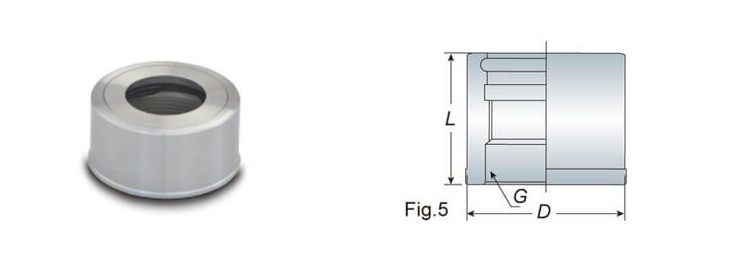

ER 螺帽-3-1.jpg

Specification

High Speed Bearing Nut

Model No.	FIG.	D	L	Nm	G	Collet Type	Weight(kg)
CN-GER16	5	30	19	70	M22x1.5P	ER16	0.08
CN-GER20	5	35	21	100	M25x1.5P	ER20	0.10
CN-GER25	5	40	22	130	M32x1.5P	ER25	0.13
CN-GER32	5	50	25	170	M40x1.5P	ER32	0.15

Unit: mm
