Features
Specification

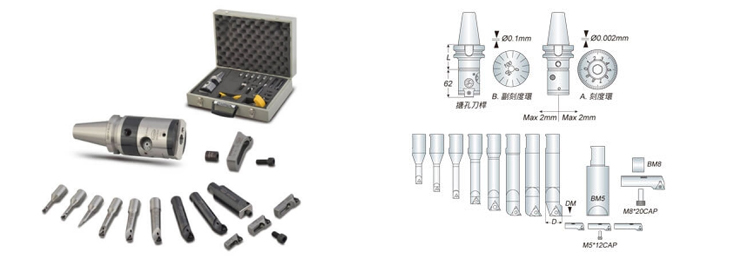

HBOR50 micro boring system which boring range is from 6 ~ 90mm.
The inside diameter of HBOR50 micro boring system is 16mm.
Insert must be ordered separately.
| Model No. | Boring Range | Holder | L | Weight (kg) |
|---|---|---|---|---|
| BT30 HBOR50/SET | 6~90 | BT30 HBOR50-093 | 45 | 8.00 |
| BT40 HBOR50/SET | 6~90 | BT40 HBOR50-102 | 50 | 8.80 |
| BT50 HBOR50/SET | 6~90 | BT50 HBOR50-102 | 65 | 12.70 |
Unit: mm
| Model No. | Boring Range (D Min.~D Max.) | Dimension (DM) | Insert | Screw | Wrench | Weight (kg) |
|---|---|---|---|---|---|---|
| BR1606-21 | 6~9 | 21 | WBGT0601..L | SB-1STR-M2 | T6 | 0.10 |
| BR1608-28 | 8~11 | 28 | TBGT0601..L | SB-1STR-M2 | T6 | 0.10 |
| BR1610-35 | 10~13 | 35 | 0.10 | |||
| BR1612-42 | 12~15 | 42 | TPGH0902..L | SB-2TR-M2.5 | T8 | 0.10 |
| BR1614-50 | 14~17 | 50 | 0.15 | |||
| BR1616-60 | 16~20 | 60 | 0.15 | |||
| BR1620-65 | 20~24 | 65 | TPGH1103..L | SB-3TR-M3 | T8 | 0.20 |
| BR1624-68 | 24~28 | 68 | 0.20 | |||
| BM5 | 60 + SRTP2938 or SRTP3652 or SRTP4468 | M5x12CAP |  4 | 0.40 | ||
| SRTP2938 | 29~38 | +10 | TPGH0902..L | SB-2TR-M2.5 | T8 | 0.03 |
| SRTP3652 | 36~52 | +12 | 0.05 | |||
| SRTP4468 | 44~68 | +12 | 0.05 | |||
| BM8 | + SRTP5790 | M8x20CAP | 6 | 0.03 | ||
| SRTP5790 | 57~90 | +20 | TPGH1103..L | SB-3TR-M3 | T8 | 0.15 |
Unit: mm
