Features
Specification
Accessories

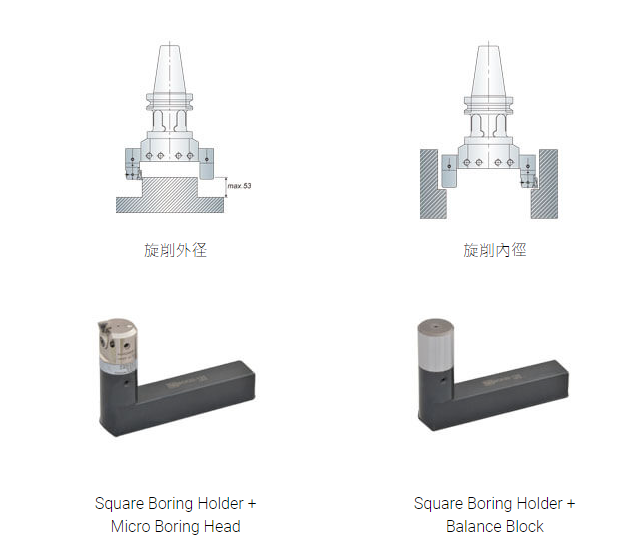

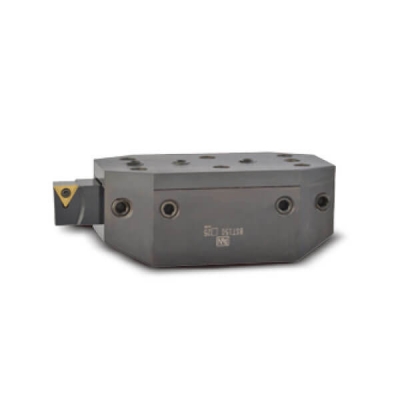

Need to use with BST Boring Holder and Block together
Micro Boring Head and Balance Block must be ordered separately

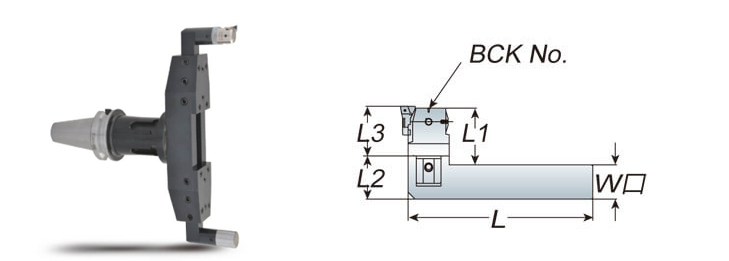

| Model No. | L | L1 | L2 | L3 | W □ | Micro Boring Head | Balance Block | Insert |
|---|---|---|---|---|---|---|---|---|
| S19-BCK25-135 | 135 | 51 | 34.5 | 35.5 | 19 | BCK25 | BS25 | TP..0802.. |
| S25-BCK25-135 | 135 | 45 | 34.5 | 35.5 | 25 | BCK25 | BS25 | |
| S25-BCK32-135 | 135 | 71.5 | 56.5 | 40 | 25 | BCK32 | BS32 |
Unit: mm
