Features
Specification
Accessories

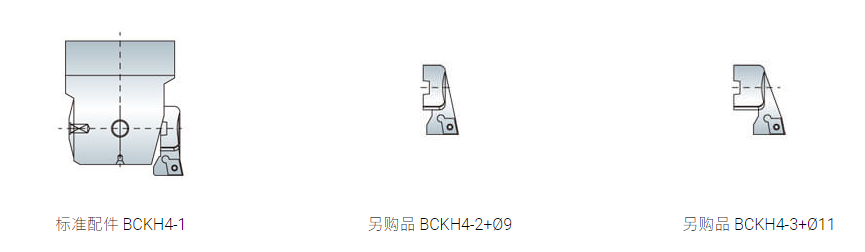

To use with H#-2&3 insert holder could extend the boring range.

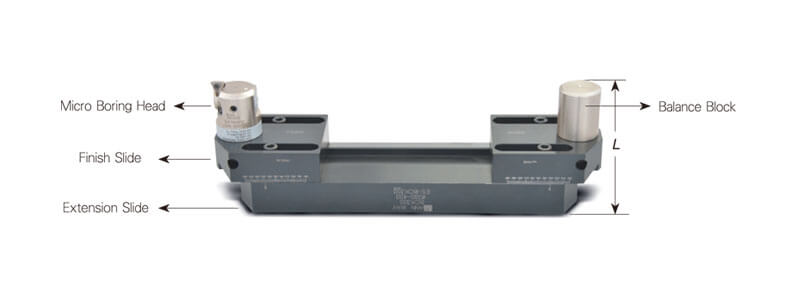

| Model No. | Boring Range | Holder | L | Extension Slide | Finish Slide | Balance Block | Micro Boring Head | Insert |
|---|---|---|---|---|---|---|---|---|
| BCK200 (5.75kgs) | 200~300 | BST | 106.5 | ES-BCK200 (2.7kgs) | FS200-600 2PCS/SET (2.2kgs) | BS41 (0.45kgs) | BCK41 (0.4kgs) | TC..1102 |
| BCK300 (7.85kgs) | 300~400 | ES-BCK300 (4.8kgs) | ||||||
| BCK400 (8.75kgs) | 400~500 | ES-BCK400 (5.7kgs) | ||||||
| BCK500 (10.05kgs) | 500~600 | ES-BCK500 (7.0kgs) |
Unit: mm
