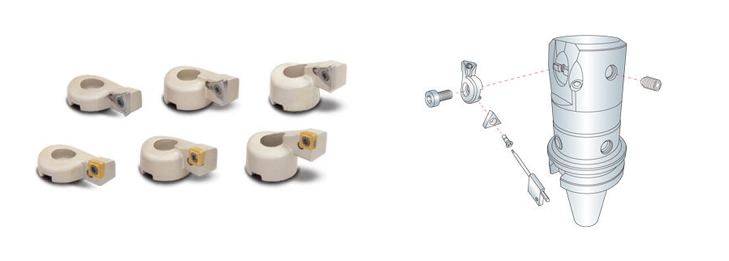

Features
Specification
When ordering, please specify the insert is TP ../ TC.. or CC.. Type.
For example: BCK H4-1-T, BCK H1-3-C …
Insert must be ordered separately.
Model No. | Insert Holder Screw | Set Screw | Insert T Type (TP/TC..) | Insert C Type (CC..) | ||||
|---|---|---|---|---|---|---|---|---|
Insert | Insert Screw | Wrench | Insert | Insert Screw | Wrench | |||
| BCK H1-1 | BCK20-M3 | 2272.542 |  TP..0802 | MS2205A | T7 |  CC..0602 | MS2506A | T9 |
| BCK H1-2 | ||||||||
| BCK H1-3 | ||||||||
| BCK H2-1 | BCK25-M3 | 2272.542 | ||||||
| BCK H2-2 | ||||||||
| BCK H2-3 | ||||||||
| BCK H3-1 | BCK32-M4 | 2272.552 | ||||||
| BCK H3-2 | ||||||||
| BCK H3-3 | ||||||||
| BCK H4-1 | BCK41-M5 | 2272.562 |  TC..1102 | MS2506A | T9 | |||
| BCK H4-2 | ||||||||
| BCK H4-3 | ||||||||
| BCK H5-1 | BCK53-M5 | 2272.582 | ||||||
| BCK H5-2 | ||||||||
| BCK H5-3 | ||||||||
| BCK H6-1 | BCK68-M8 | 2272.602 |  CC..09T3 | MS4011A | T15 | |||
| BCK H6-2 | ||||||||
| BCK H6-3 | ||||||||
| BCK H6-1 | BCK100-M8 | 2272.602 | ||||||
| BCK H6-2 | ||||||||
| BCK H6-3 | ||||||||
